Semiconductor Electronics PYQNEET 2022 Phase 2
MCQ+4 / -12022

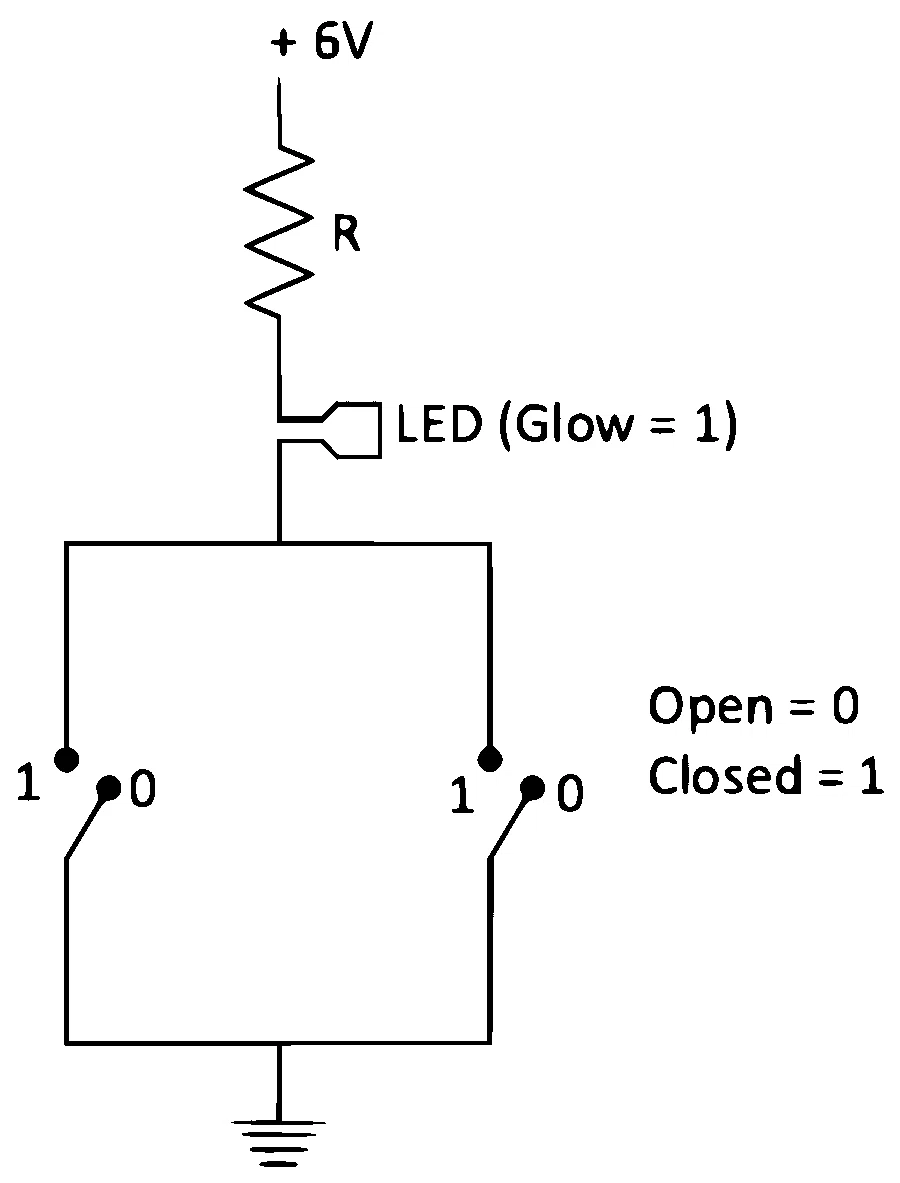

Identify the equivalent logic gate represented by the given circuit
Solution
Correct option: B
The circuit behaves as an OR gate.
Step 1
Treat each switch as an input: closed switch means input
Step 2
The bulb glows if at least one switch is closed, so the output is
Step 3
The output pattern is
Step 4
This truth table matches an OR gate. Hence, the equivalent logic gate is OR.
