Semiconductor Electronics PYQNEET 2022 Phase 1

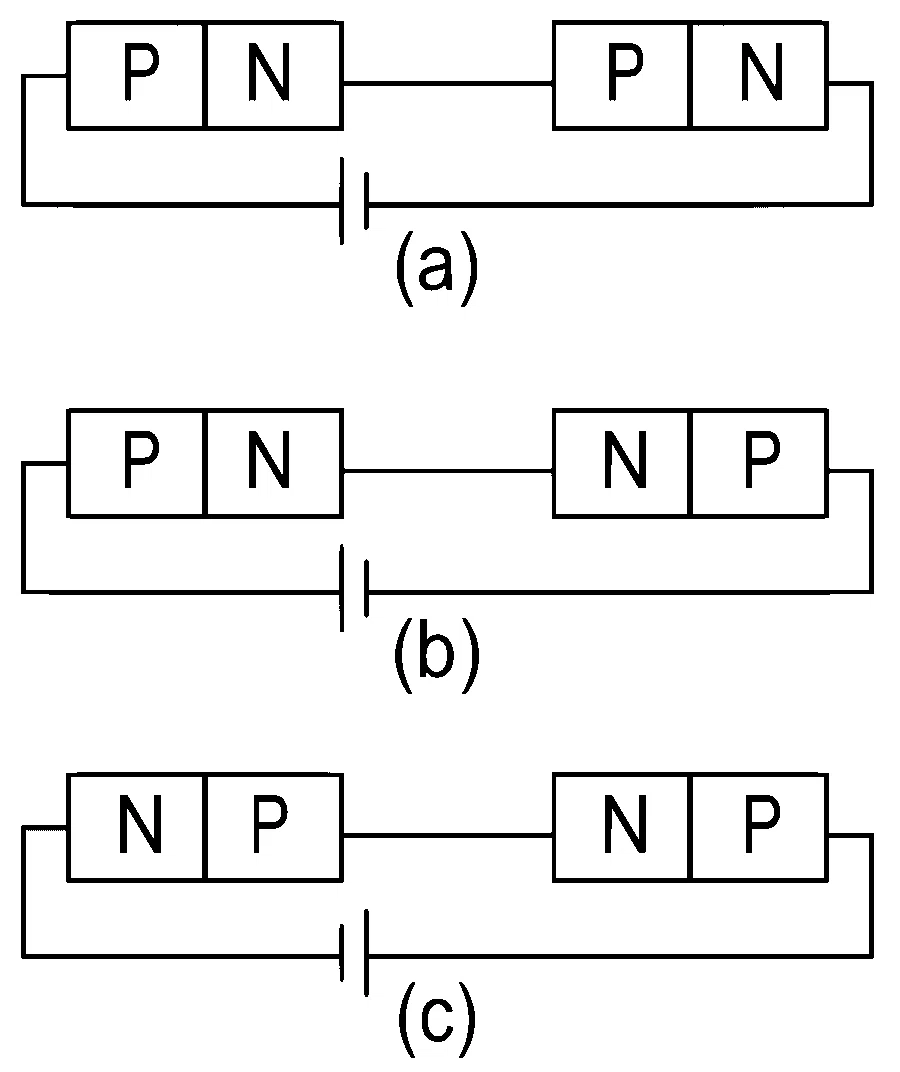

In the given circuits (a), (b) and (c), the potential drop across the two p-n junctions are equal in
Solution
Correct option: D
Option D: Both circuits (a) and (c)
Step 1
The potential drops across two p-n junctions are equal when both junctions have the same biasing condition.
Step 2
This means both junctions should be either forward biased or both should be reverse biased.
Step 3
In circuits (a) and (c), both p-n junctions are forward biased, so their potential drops are equal.
Step 4
In circuit (b), one junction is forward biased and the other is reverse biased, so their potential drops are not equal.
Step 5
Therefore, the required condition is satisfied in both circuits (a) and (c).
