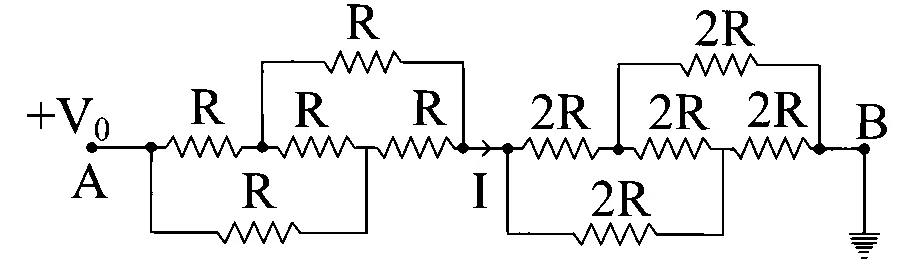

In the circuit shown, the end

Solution
Correct option: D
Identify the bridge condition
The first two resistor networks are balanced Wheatstone bridges, so the bridge branches do not affect the equivalent resistance.
Reduce the circuit
After removing the inactive bridge branches, the network between
Find equivalent resistance
Apply Ohm's law
Hence, the correct option is D.
