Current Electricity PYQKCET 2026
Solution
Correct option: B

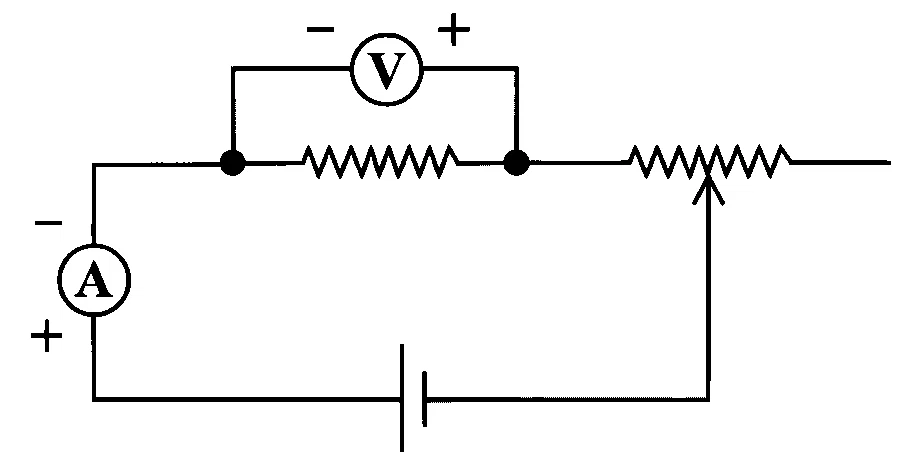

Correct option: B. It has the ammeter in series and the voltmeter in parallel with correct polarity.
Identify what is measured
To verify Ohm's law for a resistor, we must measure current through it and potential difference across it.
Place the ammeter
The ammeter measures current, so it must be connected in series with the resistor so the same current passes through both.
Place the voltmeter
The voltmeter measures potential difference, so it must be connected in parallel across the resistor.
Check the polarities
The longer line of the cell represents the positive terminal. The positive terminals of both meters should face the higher-potential side of the circuit.
Select the matching circuit
Only option B shows the ammeter in series, the voltmeter in parallel, and the correct terminal connections.
