Current Electricity PYQKCET 2020

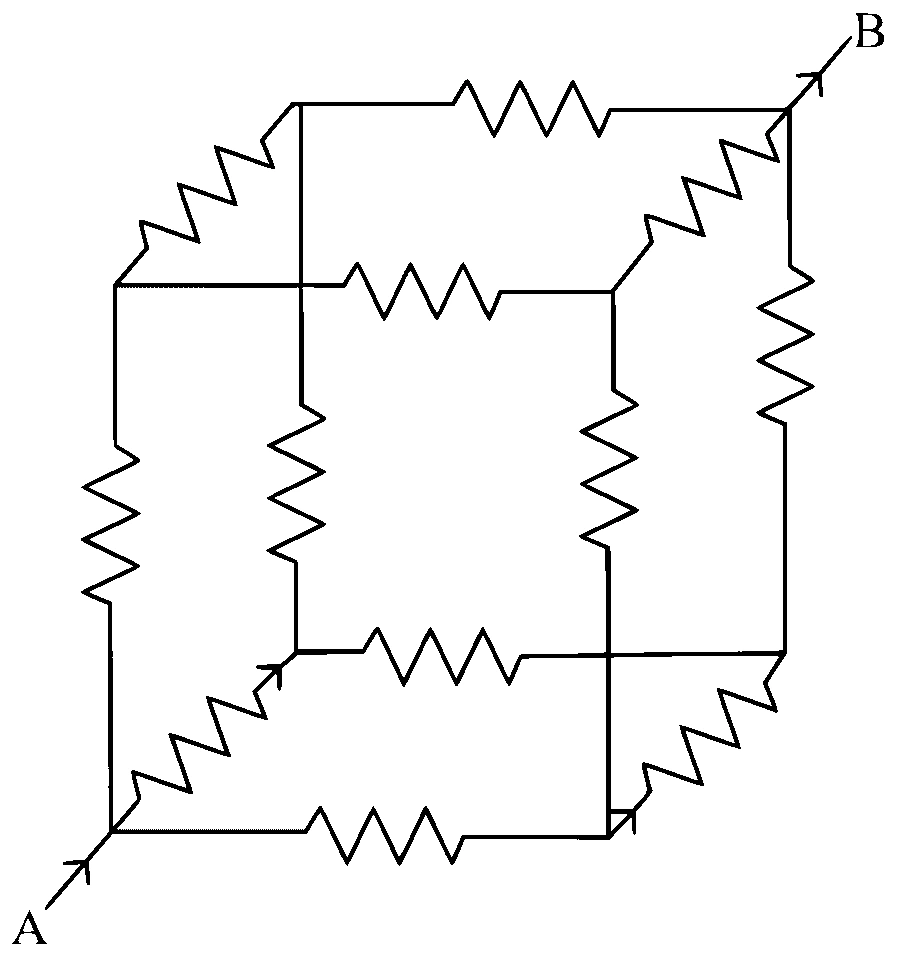

Each resistance in the given cubical network has resistance of

Solution
Correct option: A
Equivalent resistance between
Step 1
Use symmetry of the cubical network and take the total current supplied by the cell as
Step 2
Apply Kirchhoff's loop law to the loop
Step 3
The potential drops in this loop are
Step 4
Hence,
Step 5
The equivalent resistance is
So, the correct option is A.
