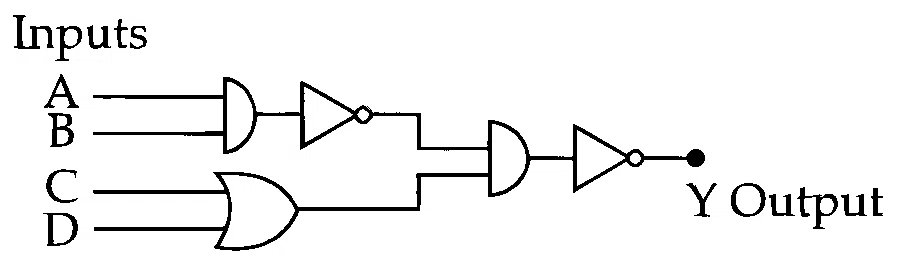

The correct truth table for the given input data of the following logic gate is :

Solution
Correct option: A
Correct option: A
Identify first two outputs
The first gate is an AND gate, so
Invert the AND output
The output of the first gate is passed through a NOT gate:
Combine intermediate outputs
The next gate combines
Find final output
The last gate inverts
Match with option
The truth table with outputs
