Electronic Devices PYQJEE Main 2026 (Online) 22nd January Morning Shift

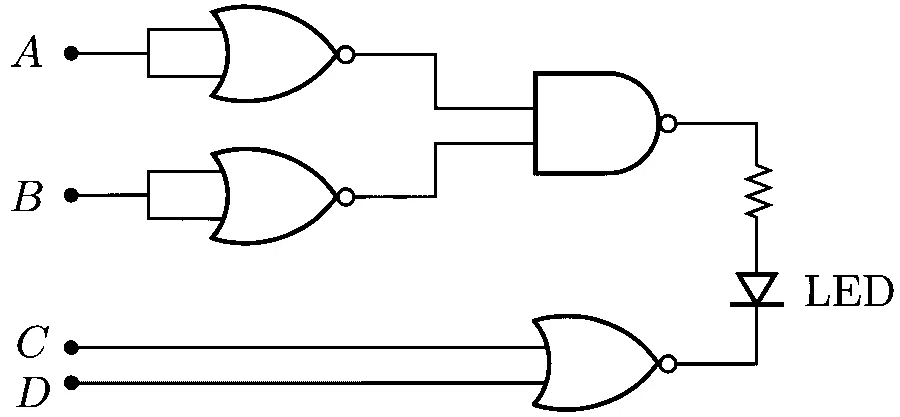

Find the correct combination of

Solution
Correct option: D
For input
Simplify The First Two Gates
Each of the first two NOR gates has both inputs tied together, so each behaves like a NOT gate:
Find The Anode Output
Gate 3 is a NAND gate receiving
This output is connected to the LED anode.
Find The Cathode Output
Gate 4 is a NOR gate with inputs
This output is connected to the LED cathode.
Use The LED Condition
The LED glows only when it is forward biased, so the anode must be HIGH and the cathode must be LOW:
Check The Given Combination
For
