Electronic Devices PYQJEE Main 2026 (Online) 21st January Morning Shift
MCQ+4 / -12026

Solution
Correct option: D

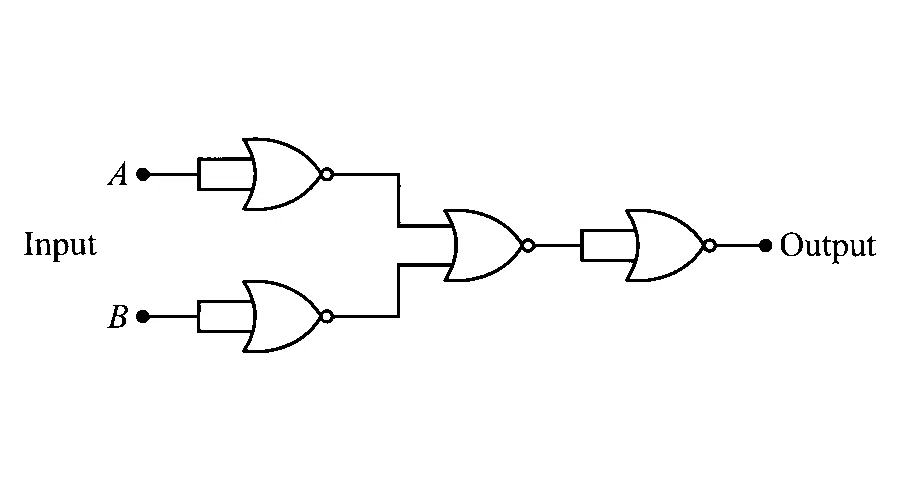

The circuit produces
Use NOR as NOT
A NOR gate with both inputs receiving the same signal works as an inverter:
Invert the inputs
The first two NOR arrangements give
Combine them
The next NOR gate takes
Final inversion
The last NOR gate acts as a NOT gate, so
Identify the gate
The expression
Hence, the correct option is D.
