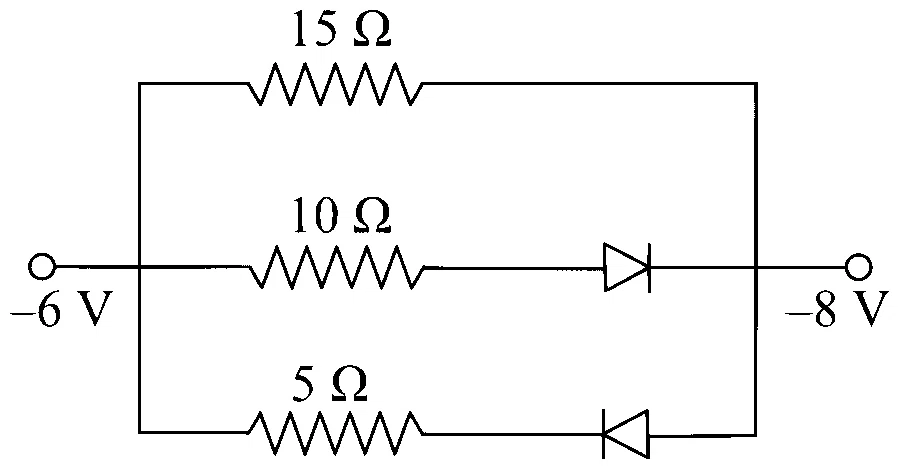

The value of net resistance of the network as shown in the given figure is :

Solution
Correct option: B
The net resistance of the network is
Identify diode states
In the given network,
Reduce the active circuit
After considering the conducting path, the effective resistors between the terminals are
Apply parallel combination
For two resistors in parallel,
Calculate net resistance
Thus,
