Electronic Devices PYQJEE Main 2024 (Online) 31st January Evening Shift
MCQ+4 / -12024

The output of the given circuit diagram is -
Solution
Correct option: D

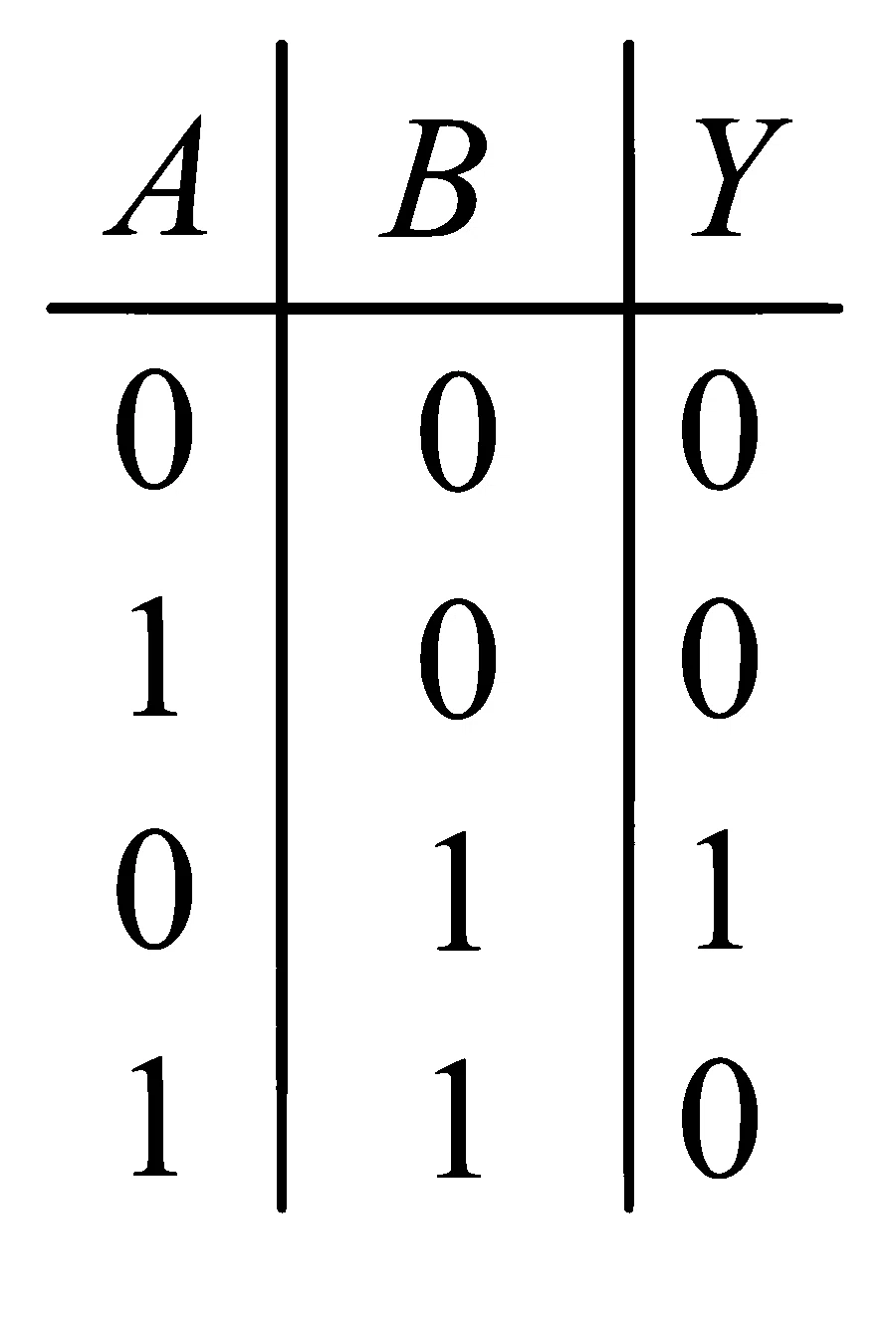

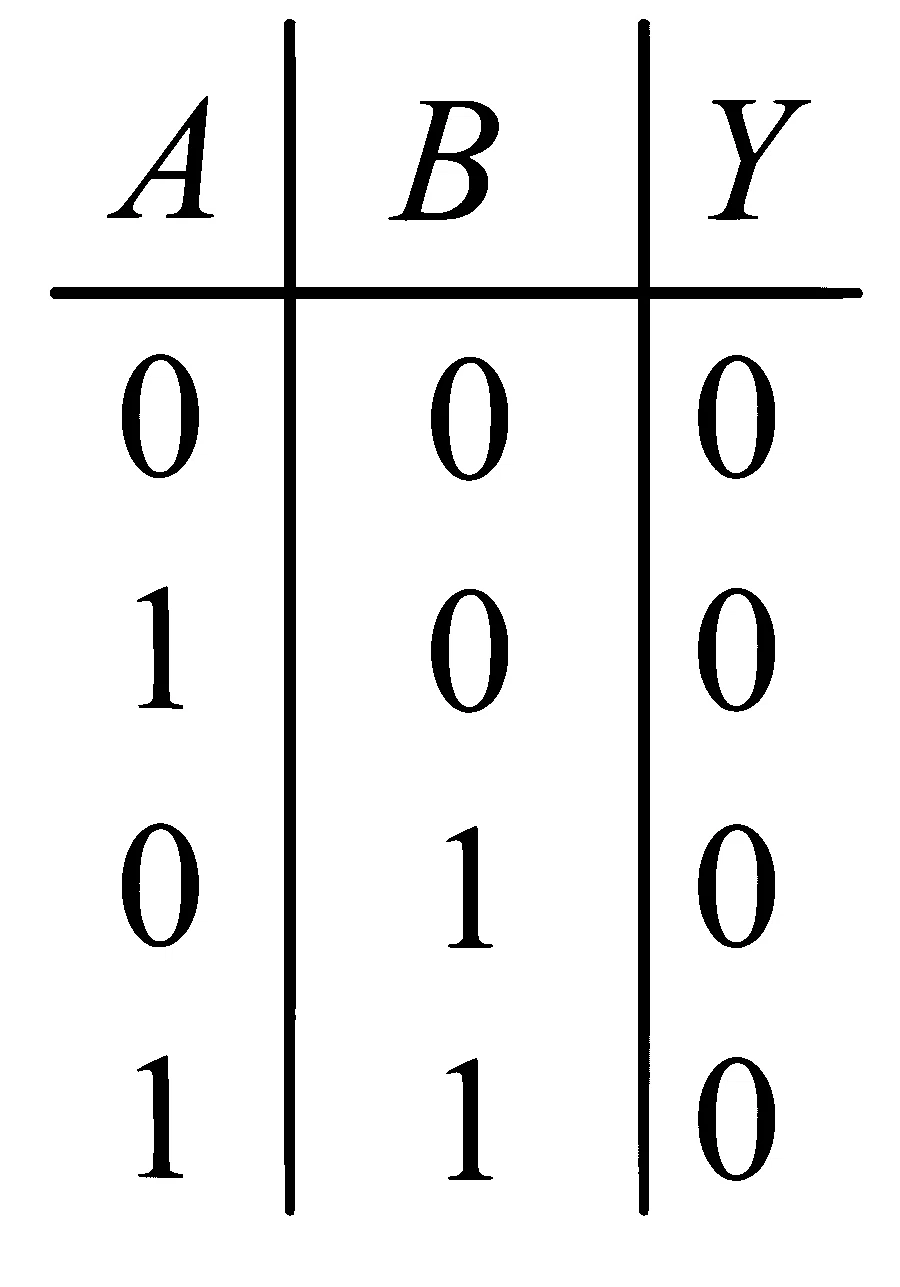

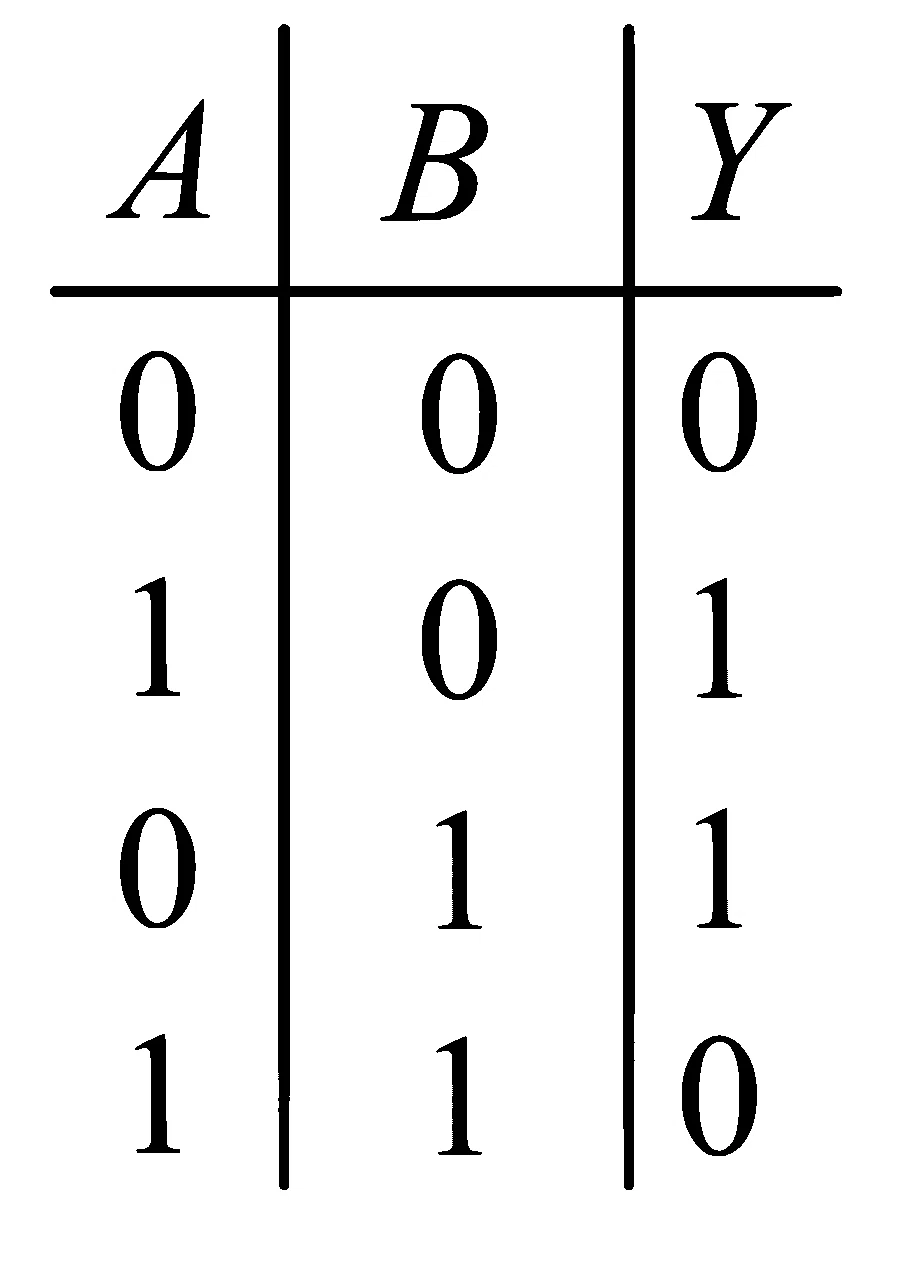

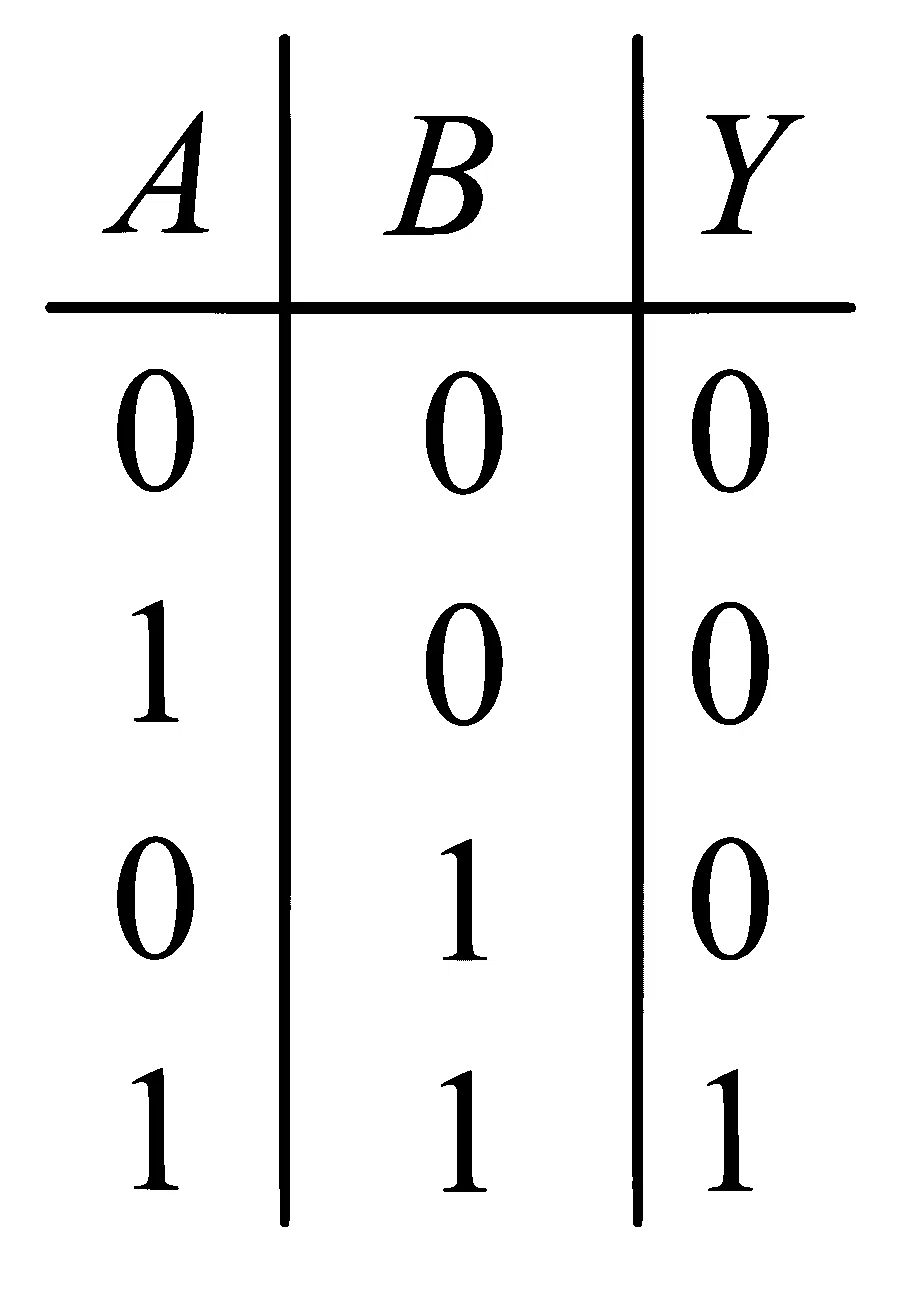

Option D
Step 1
Use complementary inputs for the NOT outputs:
Step 2
From the given gate connections, the output is
Step 3
For the shown input condition, both OR-gate outputs become high:
Step 4
Therefore,
So the output waveform corresponds to option D.
