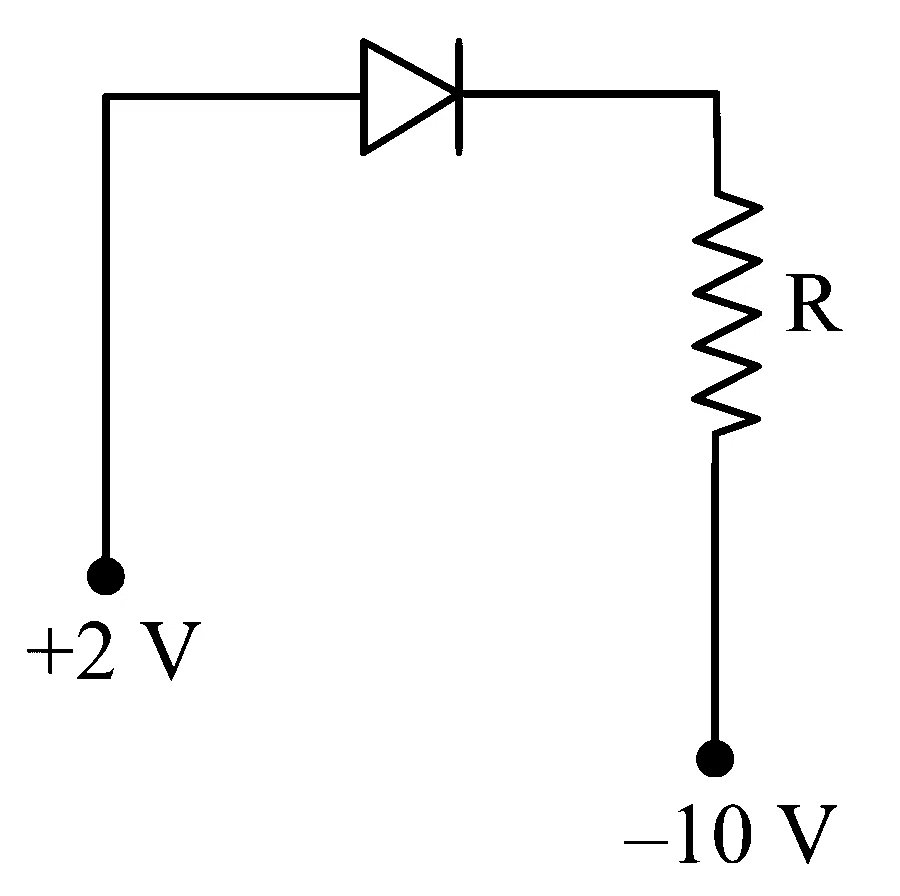

Which of the following circuits is reverse - biased?
Solution
Correct option: D
Answer: D
Recall bias condition
For a p-n junction diode to be forward biased, the p-side must be connected to the higher potential.
Identify reverse bias
So, for reverse bias, the p-side should be at a lower potential than the n-side.
Select the circuit
Only option D shows this reverse-bias arrangement. Hence, the reverse-biased circuit is D.
