Dual Nature Of Radiation PYQJEE Main 2024 (Online) 4th April Morning Shift

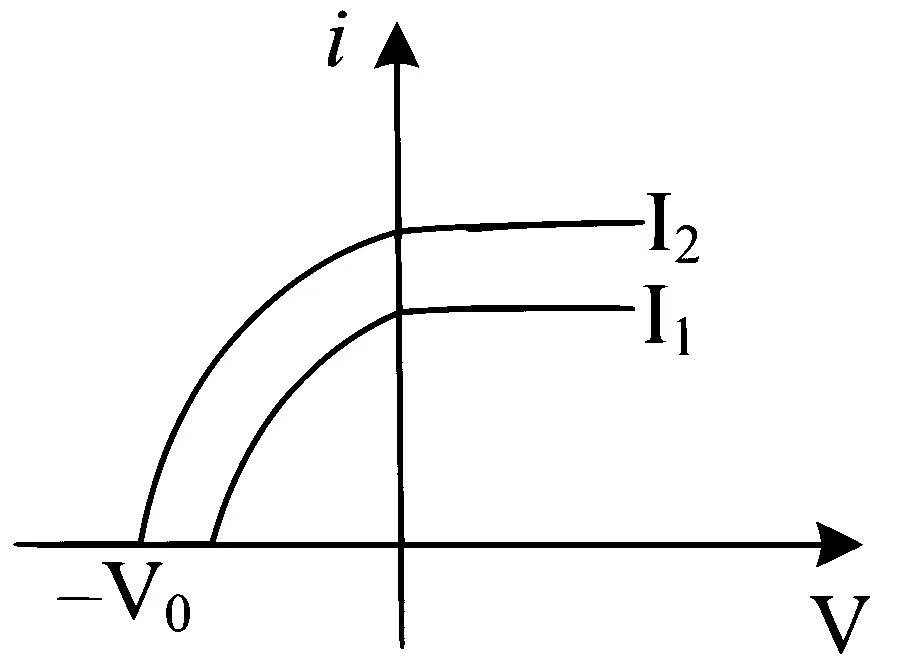

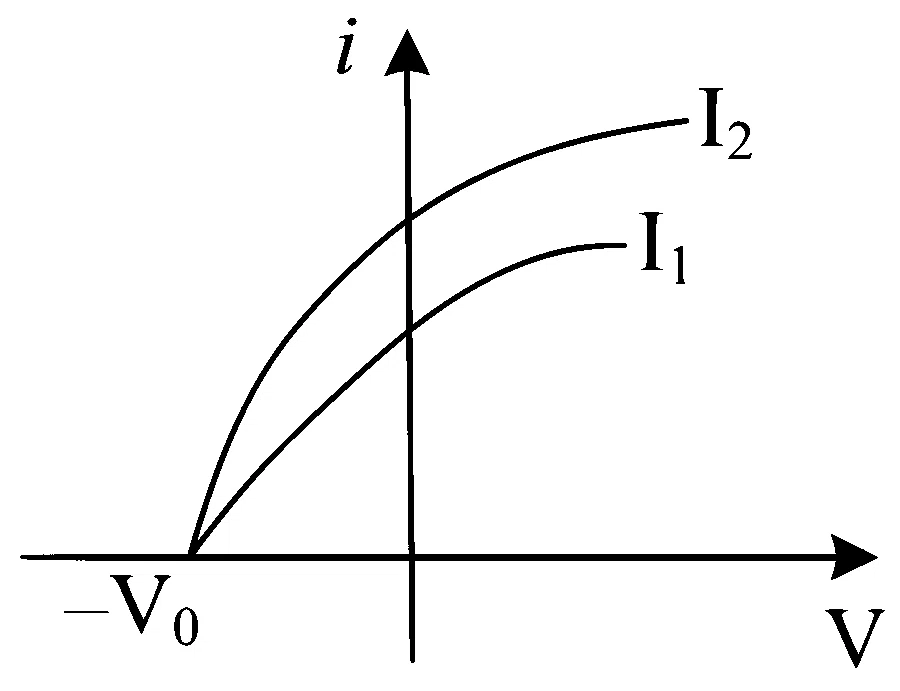

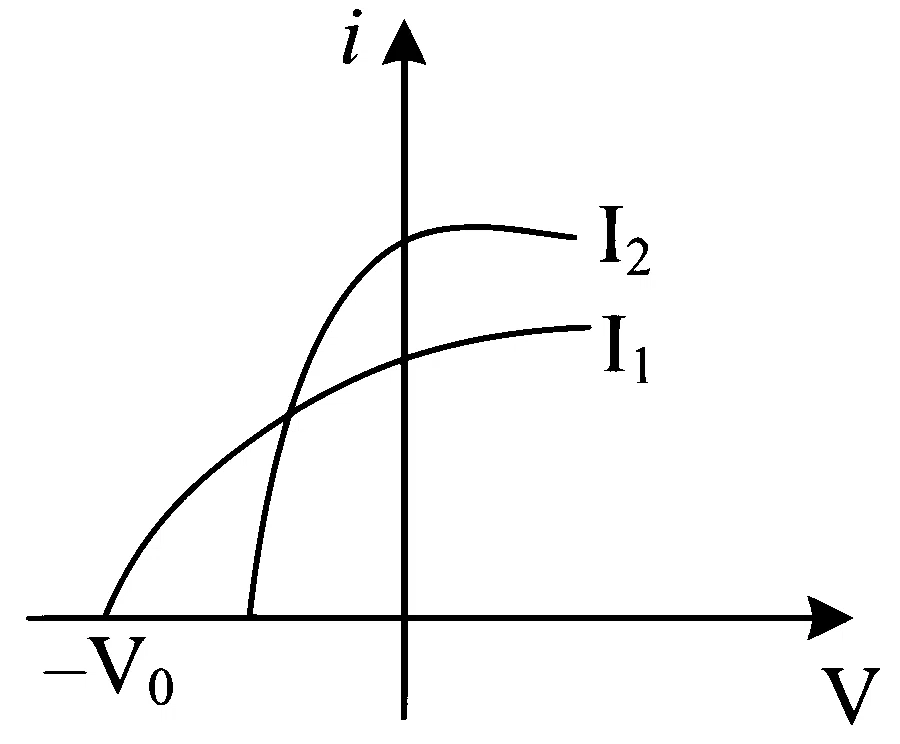

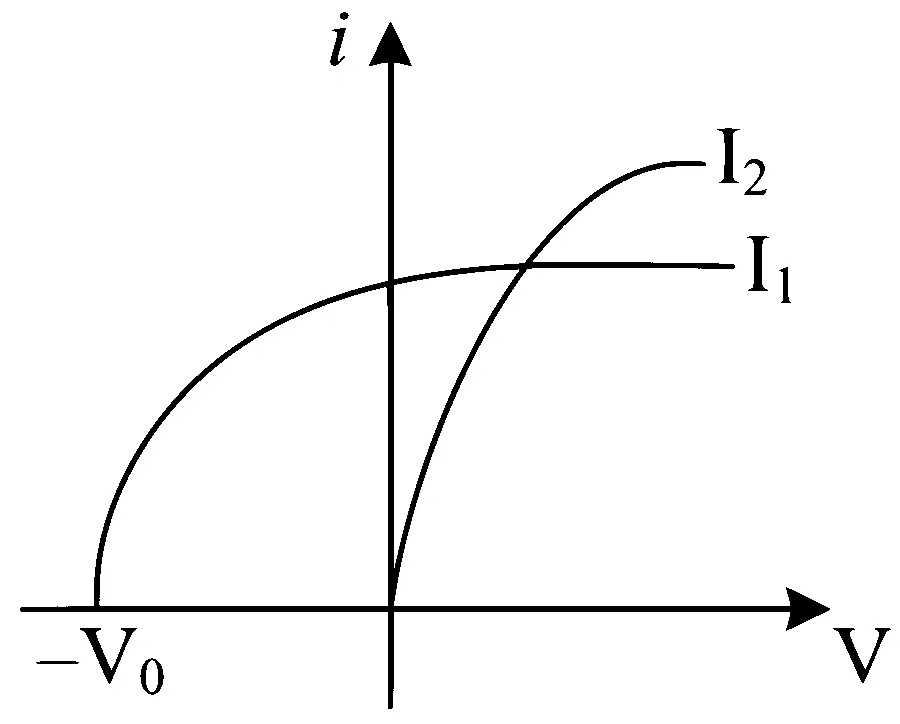

Which figure shows the correct variation of applied potential difference (V) with photoelectric current (I) at two different intensities of light
Solution
Correct option: C
Answer: C
Same Wavelength
Both lights have the same wavelength, so their frequency is the same.
Stopping Potential
Stopping potential depends on frequency, not on intensity. Hence both curves must have the same stopping potential.
Effect of Intensity
Since
Conclusion
The correct graph must show the same stopping potential but greater current for
