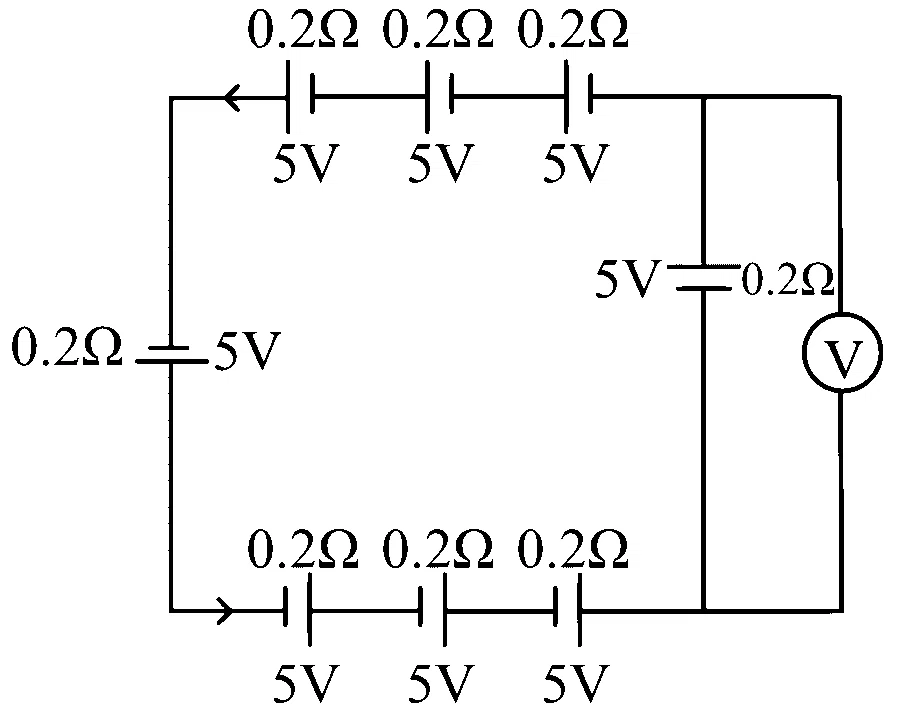

The reading in the ideal voltmeter shown in the given circuit diagram is :


Solution
Correct option: D
Step 1
For the identical cells in parallel, use the equivalent emf and internal resistance relation given by the source:
Step 2
Substitute the equivalent values:
Step 3
The terminal voltage of each cell is
Step 4
Now,
