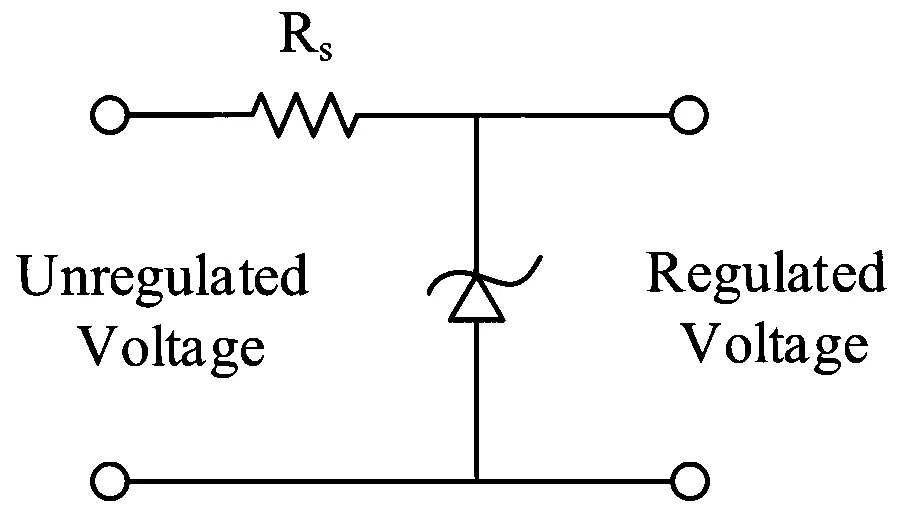

A zener diode of power rating 1.6 W is to be used as voltage regulator. If the zener diode has a breakdown of 8V and it has to regulate voltage fluctuating between 3 V and 10 V. The value of resistance Rs for safe operation of diode will be

Solution
Correct option: C
Required series resistance is 10
Use zener power limit
The maximum safe current through the zener is found from its power rating:
Find maximum zener current
With
Voltage across series resistor
For the highest input voltage,
Calculate resistance
Using
So the correct option is C.
