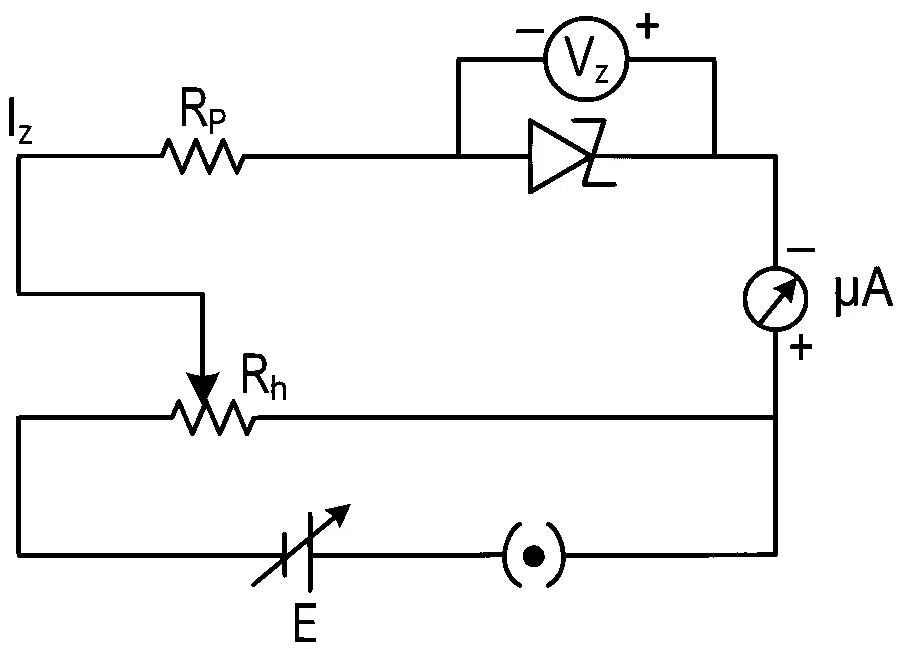

The circuit diagram used to study the characteristic curve of a zener diode is connected to variable power supply (0

Solution
Answer: 125
Required resistance = 125 Ω
Use zener power limit
For safe operation, the maximum zener power is
Find maximum zener current
Given
Voltage across protection resistor
At the maximum supply voltage, the resistor must drop
Calculate series resistance
So, the required resistance is
