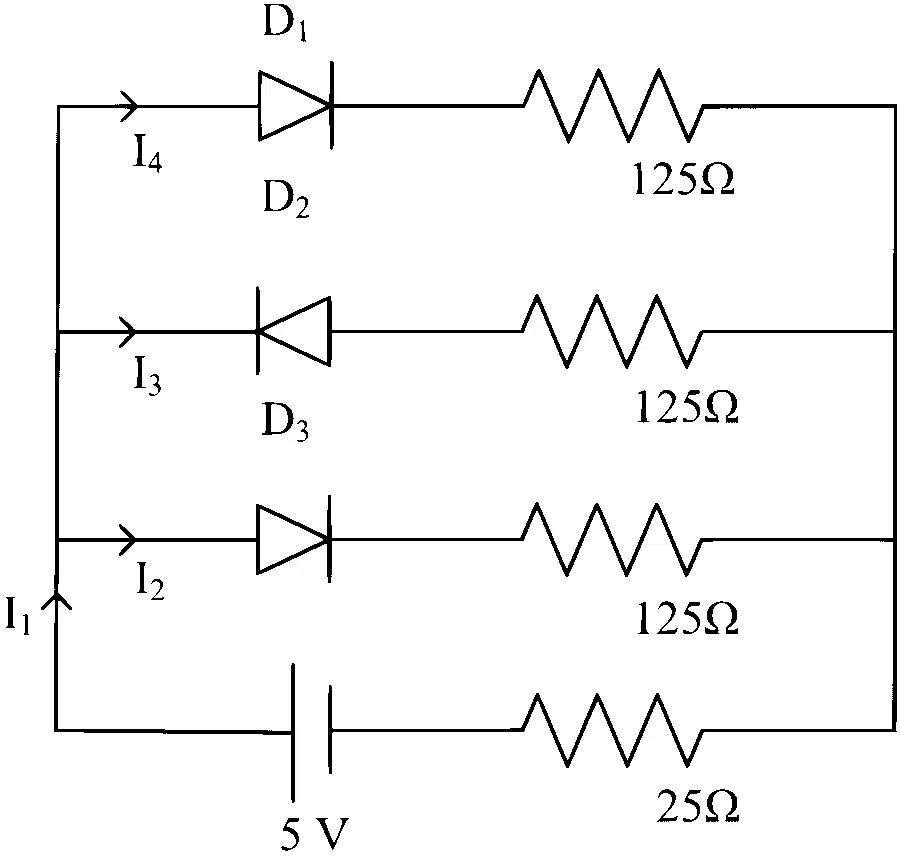

If each diode has a forward bias resistance of

Which of the following options is correct :
Solution
Correct option: B
Correct option: B.
Step 1
Reduce the resistor network shown in the circuit. The equivalent resistance is
Step 2
Using the supply voltage, the main current is
Step 3
The current splits equally in the two identical branches, so
Step 4
Therefore,
So, option B is correct.
