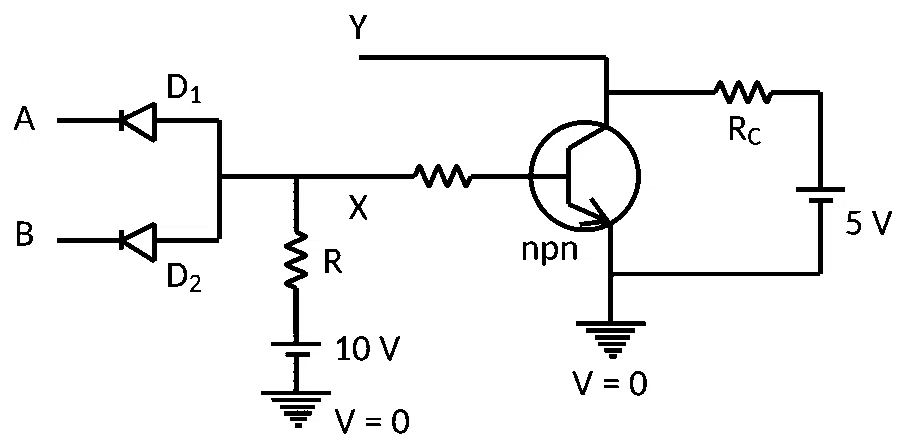

In the following circuit, the correct relation between output (Y) and inputs A and B will be :

Solution
Correct option: C
Answer: C
Identify the first operation
The two inputs
Identify the next operation
The output of the AND gate is then fed into a NOT gate.
Write the final output
Therefore, the circuit output is the complement of
Choose the option
This matches option C.
