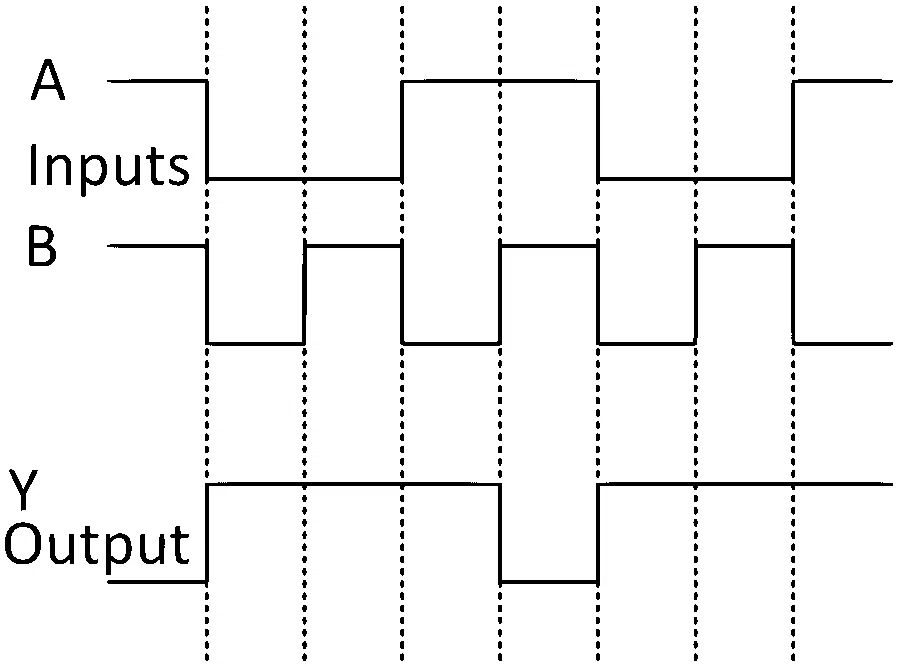

Identify the correct Logic Gate for the following output (Y) of two inputs A and B.
Solution
Correct option: B
Answer: B
Step 1
From the given waveform/table, compare the output Y with the inputs A and B for all input cases.
Step 2
The output becomes high only when both inputs are unlike:
Step 3
When the inputs are the same,
Step 4
This is the characteristic of an XOR gate:
Step 5
Hence, the correct logic gate is shown in option B.
