Alternating Current PYQJEE Main 2022 (Online) 27th June Morning Shift
INTEGER+4 / -12022

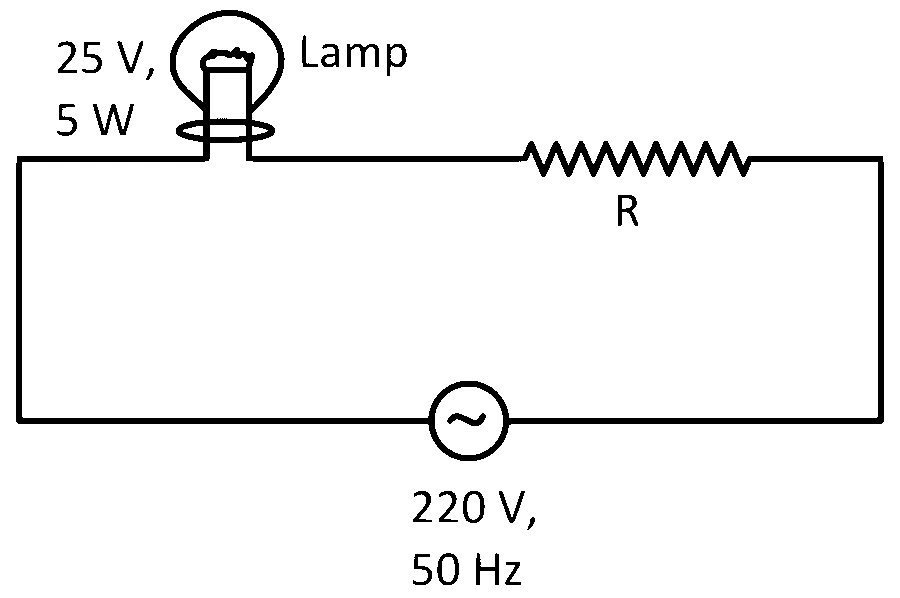

A 220 V, 50 Hz AC source is connected to a 25 V, 5 W lamp and an additional resistance R in series (as shown in figure) to run the lamp at its peak brightness, then the value of R (in ohm) will be _____________.
Solution
Answer: 975
Find lamp resistance
For the rated lamp,
Find rated current
At peak brightness, the lamp must carry its rated rms current:
Use total series resistance
The source voltage is
Calculate extra resistance
Solving,
