Rotational Motion PYQIIT-JEE 2012 Paper 2 Offline
The general motion of a rigid body can be considered to be a combination of (i) a motion of its centre of mass about an axis, and (ii) its motion about an instantaneous axis passing through the centre of mass. These axes need not be stationary. Consider, for example, a thin uniform disc welded (rigidly fixed) horizontally at its rim to a massless stick, as shown in the figure. When the disc-stick system is rotated about the origin on a horizontal frictionless plane with angular speed

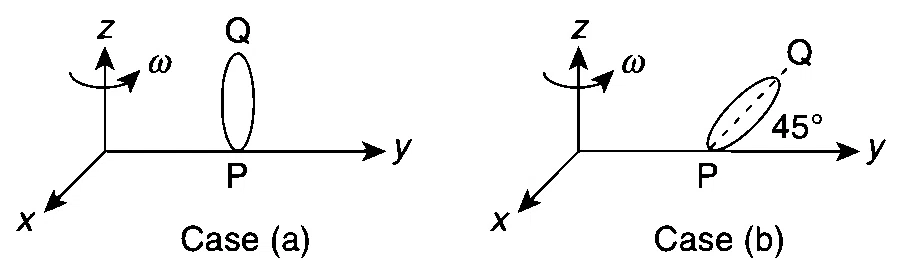

Now consider two similar systems as shown in the figure.
Case (a) : The disc with its face vertical and parallel to x-z axis;
Case (b) : The disc with its face making an angle of 45
In both the cases, the disc is welded at point P, and the systems are rotated with constant angular speed

Which of the following statements about the instantaneous axis (passing through the centre of mass) is correct?
Solution
Correct option: A
The instantaneous axis through the centre of mass is vertical in both cases. Hence, option A is correct.
Track the overall rotation
In each case, consider the motion of the entire system. It turns through
Relate disc rotation
During this same turn, the disc also rotates through
Identify the axis
Since the rotation of the disc about the centre of mass is about the vertical direction, the instantaneous axis through the centre of mass is vertical.
Compare both cases
The same argument applies to both cases (a) and (b), so the axis is vertical in both.
