Alternating Current PYQBITSAT 2021

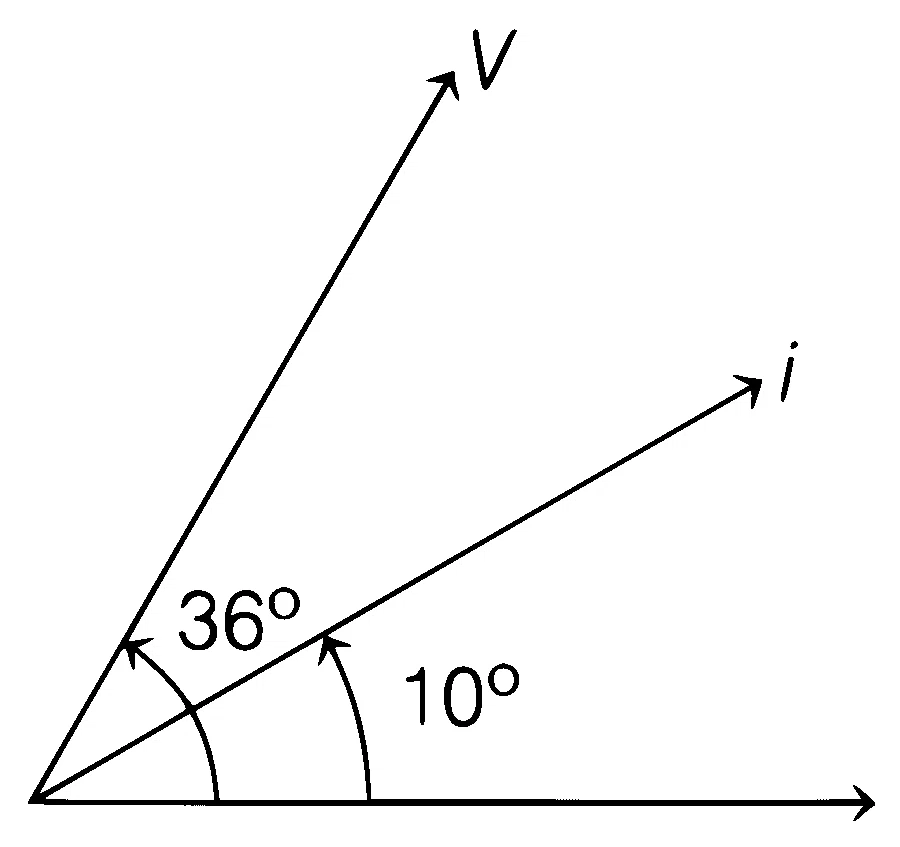

The phasor diagram of a load represents which circuit?

Solution
Correct option: C
Answer: C — R-L-C circuit with
Read the phasor diagram
The diagram shows that voltage is ahead of current, so the current lags behind the voltage.
Rule out pure inductance
In a purely inductive circuit, current lags voltage by exactly
Here, the phase angle is less than
Identify the nature of load
A lagging current with phase angle less than
Apply the condition
Net inductive behaviour in an R-L-C circuit occurs when
Therefore, the circuit is an R-L-C circuit with inductive reactance greater than capacitive reactance.
