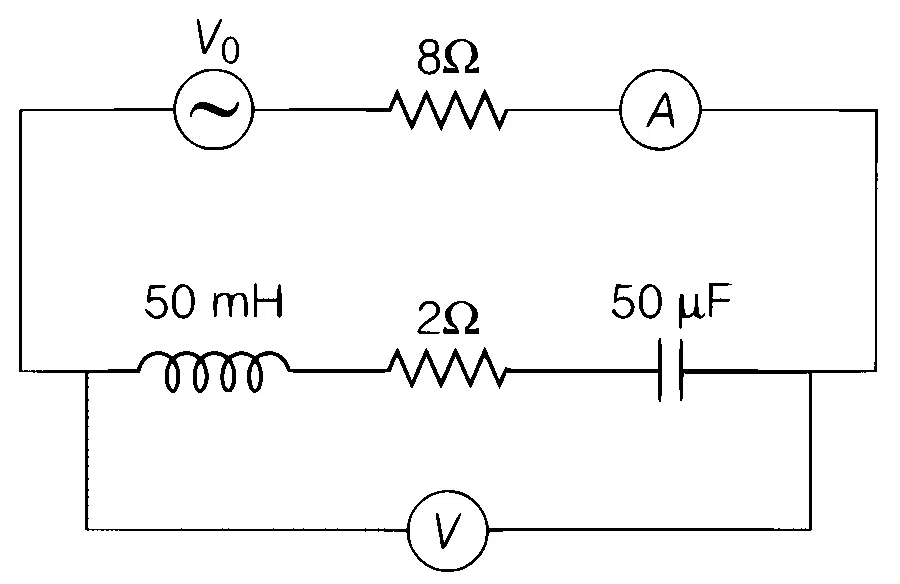

In the circuit shown in the figure, the AC source gives a voltage V = 20 cos (2000t) neglecting source resistance, the voltmeter and ammeter reading will be

Solution
Correct option: B
Answer: B — 2.82 V, 1.41 A
Identify circuit values
From the circuit, take
Compare reactances
Inductive reactance is
Capacitive reactance is
Find current
Since
Convert to RMS and voltmeter reading
The ammeter reads RMS current:
The voltmeter is across
