WB JEE
General Organic Chemistry PYQWB JEE 2021

Solution
Correct option: B
The invalid resonating structures are II and IV because nitrogen valency is not represented correctly in them.
Use the resonance rule
Each contributing structure must satisfy normal valency requirements while only electron positions change.
Inspect the given forms

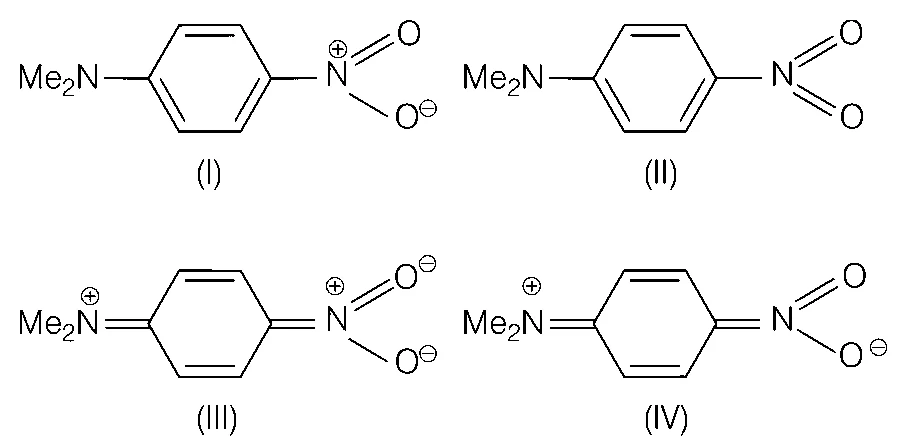

For p-nitro-N,N-dimethylaniline, the proposed structures must keep the valencies of both nitrogen atoms consistent.
Identify the error
In structures II and IV, the valency of nitrogen is not shown correctly, so these cannot be valid resonance contributors.
Conclusion
Thus, the structures that cannot represent resonance are II and IV. Therefore, the correct option is B.
