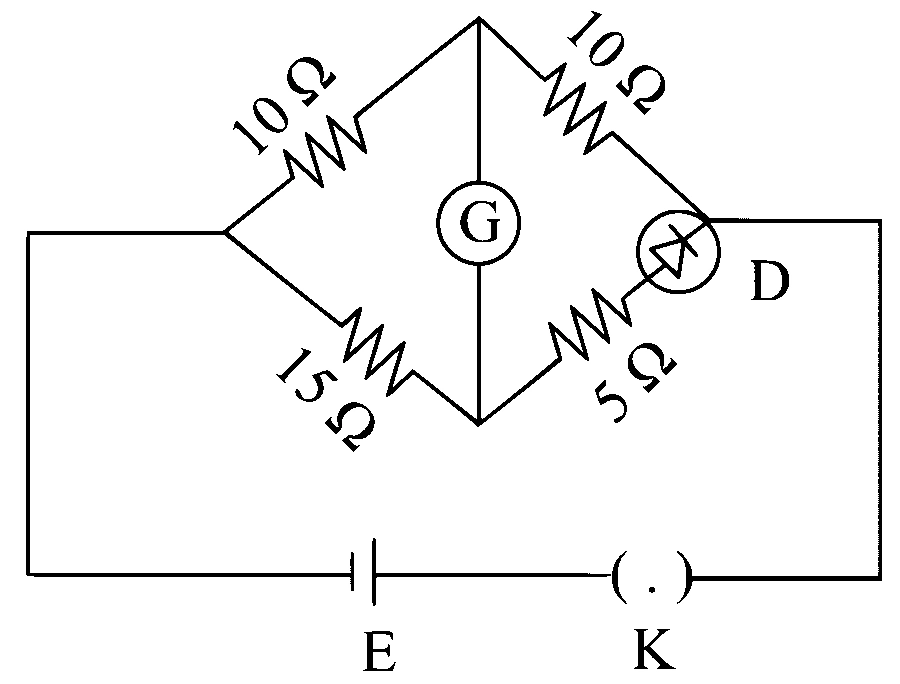

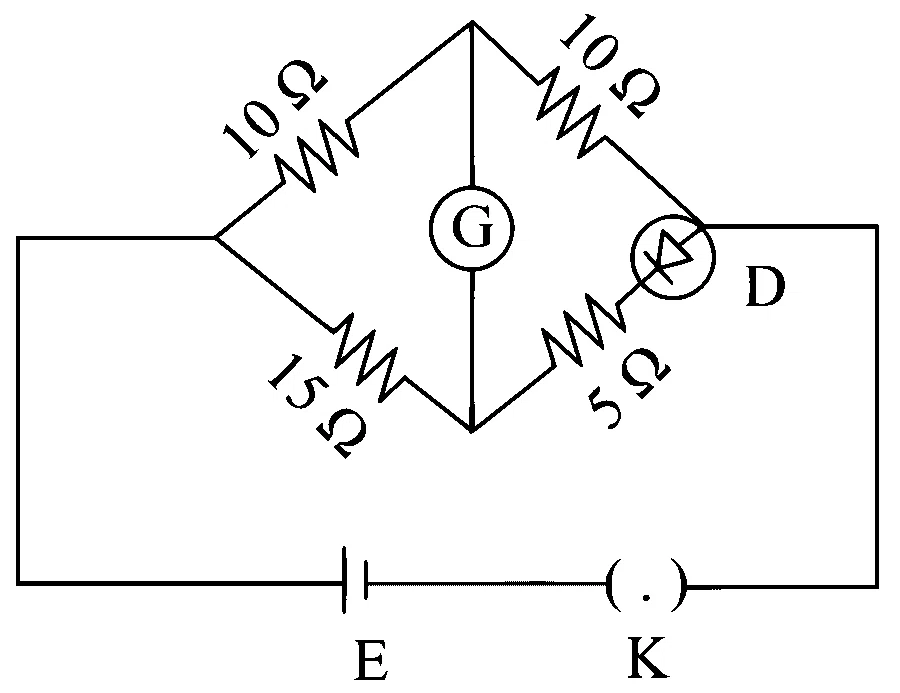

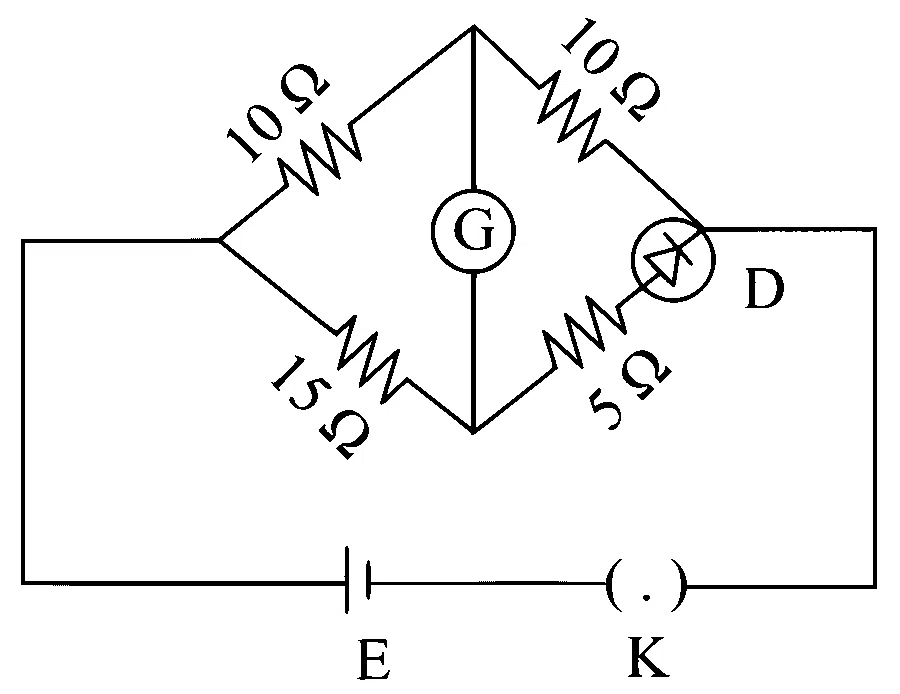

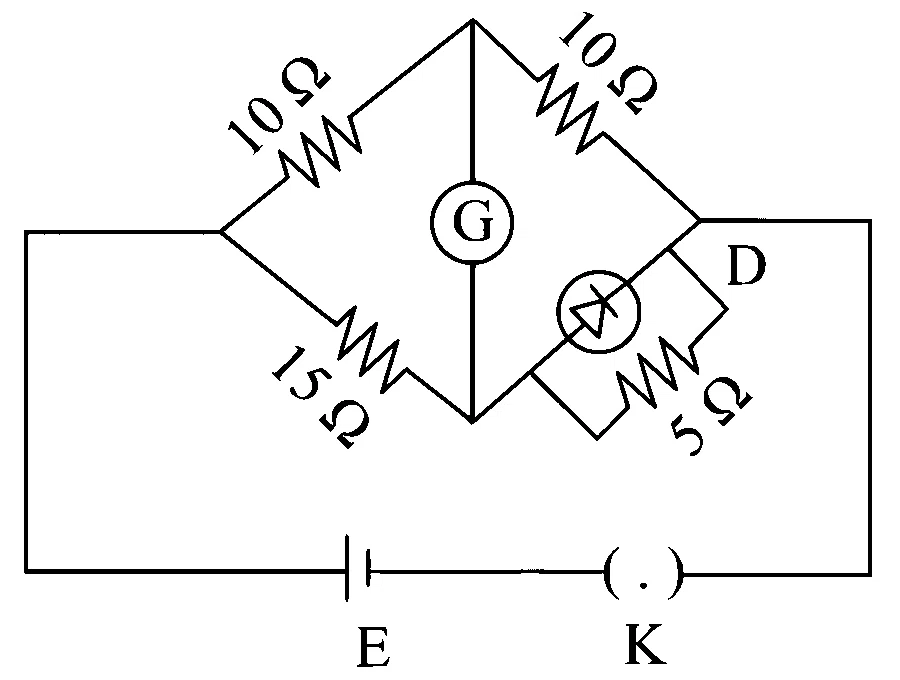

Choose the correct circuit which can achieve the bridge balance.
Solution
Correct option: A
Answer: A
Check Balance Condition
For a bridge to be balanced, the ratio of resistances in one pair of opposite arms must equal the ratio in the other pair.
Apply It To Option A
In option A, the balance condition becomes
Find Diode Resistance
Solving the condition gives
Conclude
A conducting diode can have dynamic resistance, so
