Semiconductor Electronics PYQNEET 2023 Manipur

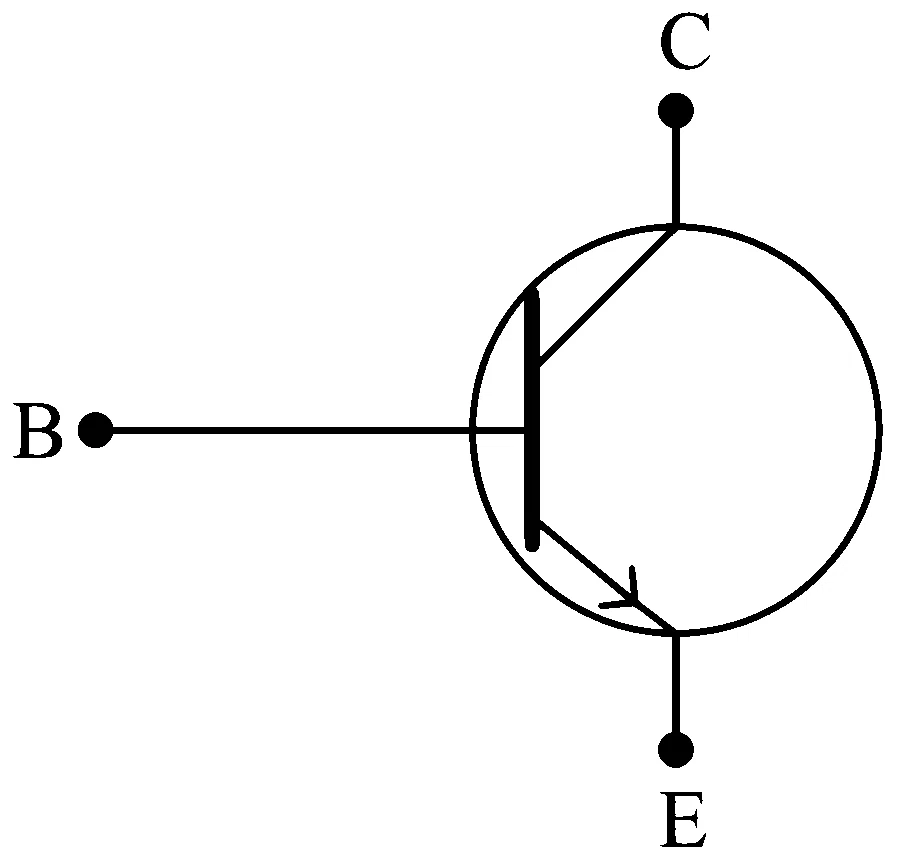

The above figure shows the circuit symbol of a transistor. Select the correct statements given below:
(A) The transistor has two segments of p-type semiconductor separated by a segment of n-type semiconductor.
(B) The emitter is of moderate size and heavily doped.
(C) The central segment is thin and lightly doped.
(D) The emitter base junction is reverse biased in common emitter amplifier circuit.
Solution
Correct option: D
The correct statements are (B) and (C).
Identify transistor type
From the symbol, the emitter current is shown leaving the emitter, so the transistor is an NPN transistor, not PNP.
Check statement A
An NPN transistor has two n-type regions separated by a p-type base. Hence statement (A) is incorrect.
Use doping and size order
The doping order is
Check biasing in amplifier mode
In active mode of a common-emitter amplifier, the emitter-base junction is forward biased and the collector-base junction is reverse biased. Hence statement (D) is incorrect.
Conclusion
Only statements (B) and (C) are correct. Therefore, the answer is D.
