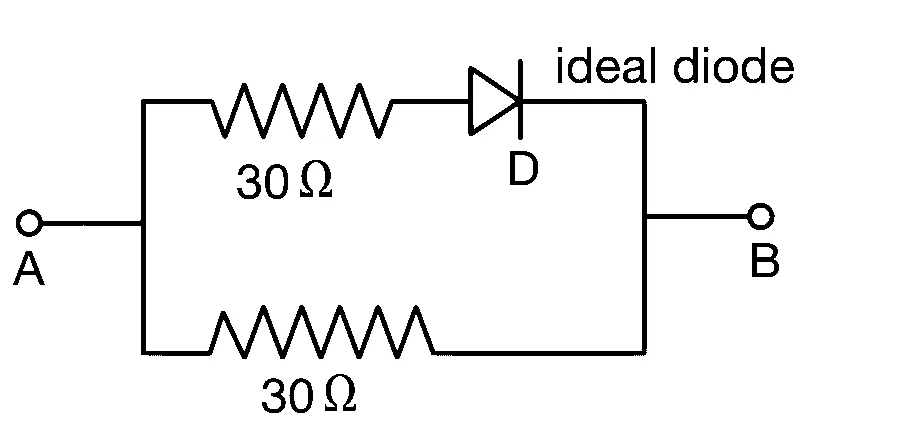

In the diagram shown, the resistance between points A and B is ' ' when an ideal diode D is forward biased and is ' ' when ideal diode D is reverse biased. The ratio is


Solution
Correct option: C
Forward bias condition
For an ideal diode in forward bias, the diode acts like a conducting wire with zero resistance.
Calculate \(R_1\)
Then both branches provide
Reverse bias condition
For an ideal diode in reverse bias, the diode acts like an open switch, so the upper branch carries no current.
Calculate \(R_2\)
Only the lower
Take the ratio
Therefore,
