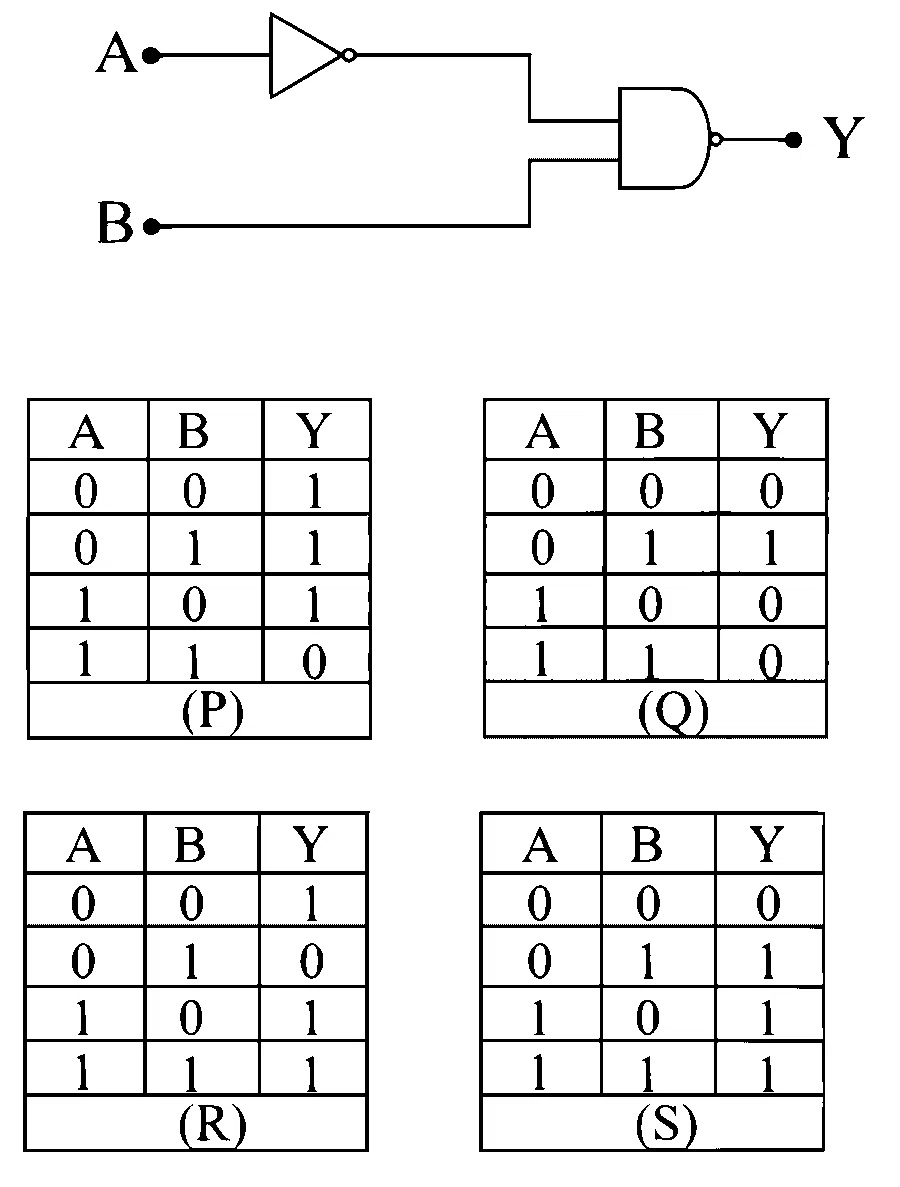

For the following digital logic circuit, the correct truth-table is

Solution
Correct option: D
Answer: D
Write the output expression
From the circuit, the output is
Apply De Morgan's theorem
Using
Make the truth table
| 0 | 0 | 1 | 1 |
| 0 | 1 | 0 | 0 |
| 1 | 0 | 1 | 1 |
| 1 | 1 | 0 | 1 |
Match with options
The output sequence is
