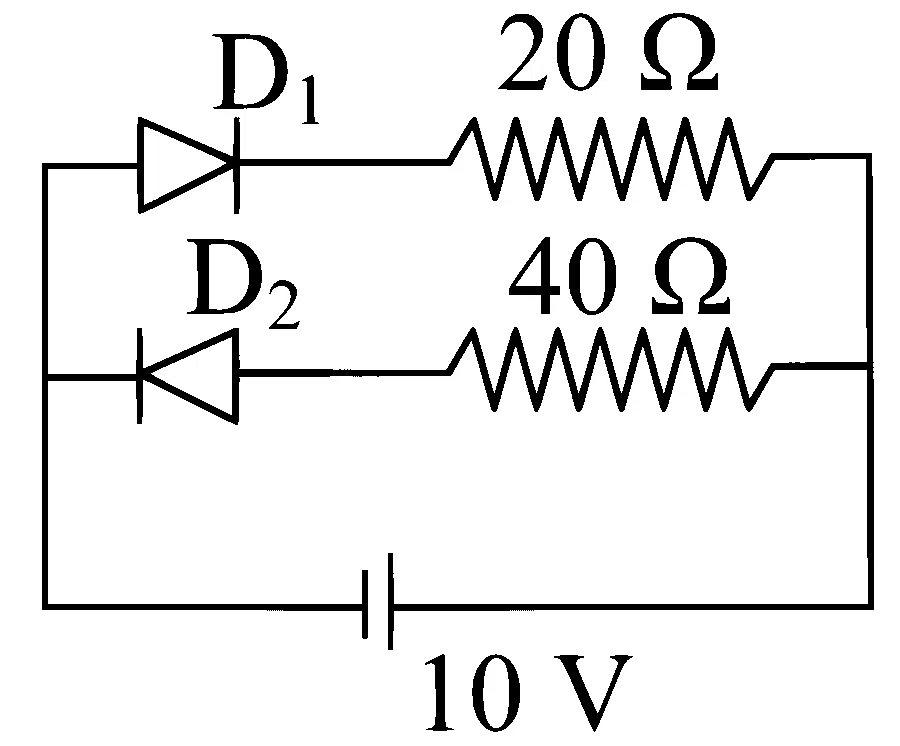

Two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is

Solution
Correct option: B
The current supplied by the battery is
Step 1
Check the biasing of the two ideal diodes in the circuit.
Step 2
Diode
Step 3
Hence, no current passes through the branch containing the
Step 4
The effective current from the battery is therefore calculated using
Step 5
Thus, the battery supplies
