Motion PYQMHT CET 2024 9th May Evening Shift

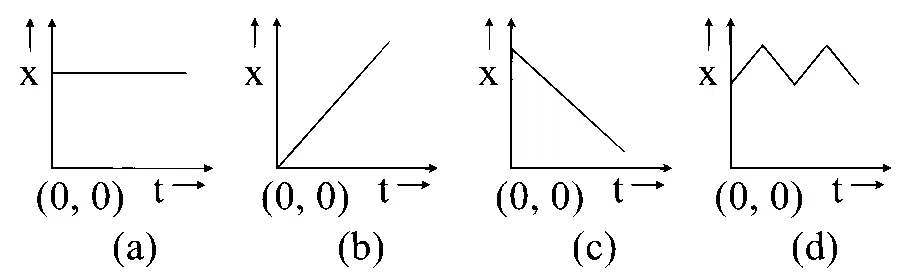

The following figures show the variation of displacement with time of a particular object.

Solution
Correct option: A
Option A is correct.
Use Slope Concept
In a displacement-time graph, the slope gives velocity.
Check Figure (a)
Figure (a) has constant displacement, so its slope is zero. Hence, the object is at rest.
Check Figure (b)
Figure (b) is a straight line with positive slope, so the object has uniform velocity in the positive
Choose the Statement
Thus, figure (a) shows rest and figure (b) shows uniform motion in the positive
