Moving Charges And Magnetism PYQKCET 2021
Which of the field pattern given below is valid for electric field as well as for magnetic field?
Solution
Correct option: D
Option D is valid for both electric and magnetic field patterns.
Check Source/Sink Patterns

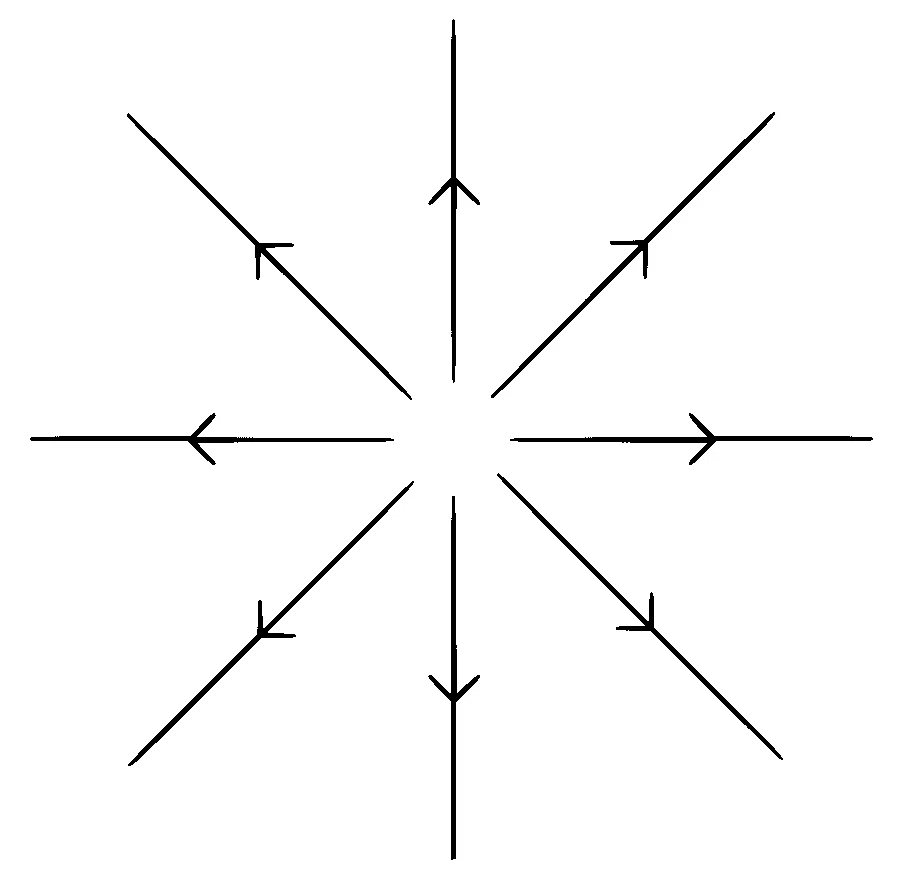

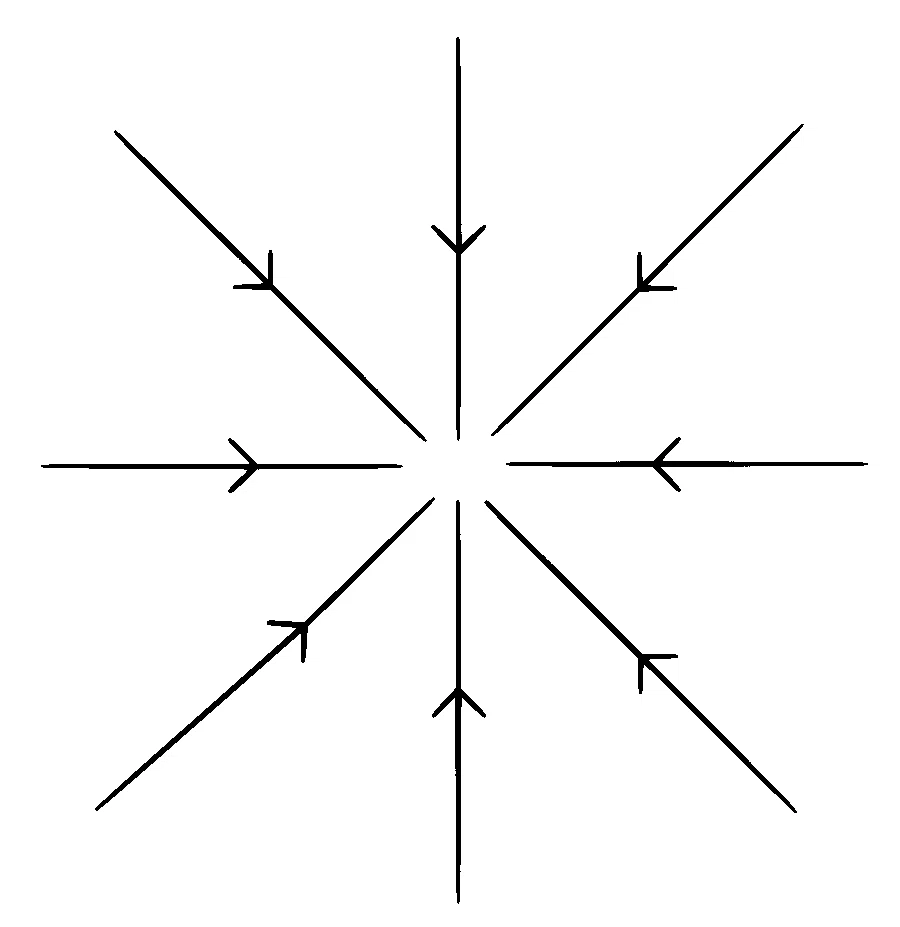

Options A and B show field lines starting from or ending at a point charge, which is possible for electric fields.
Apply Magnetic Field Rule
Such isolated sources or sinks cannot represent magnetic fields because magnetic monopoles do not exist.
Check Closed Loops

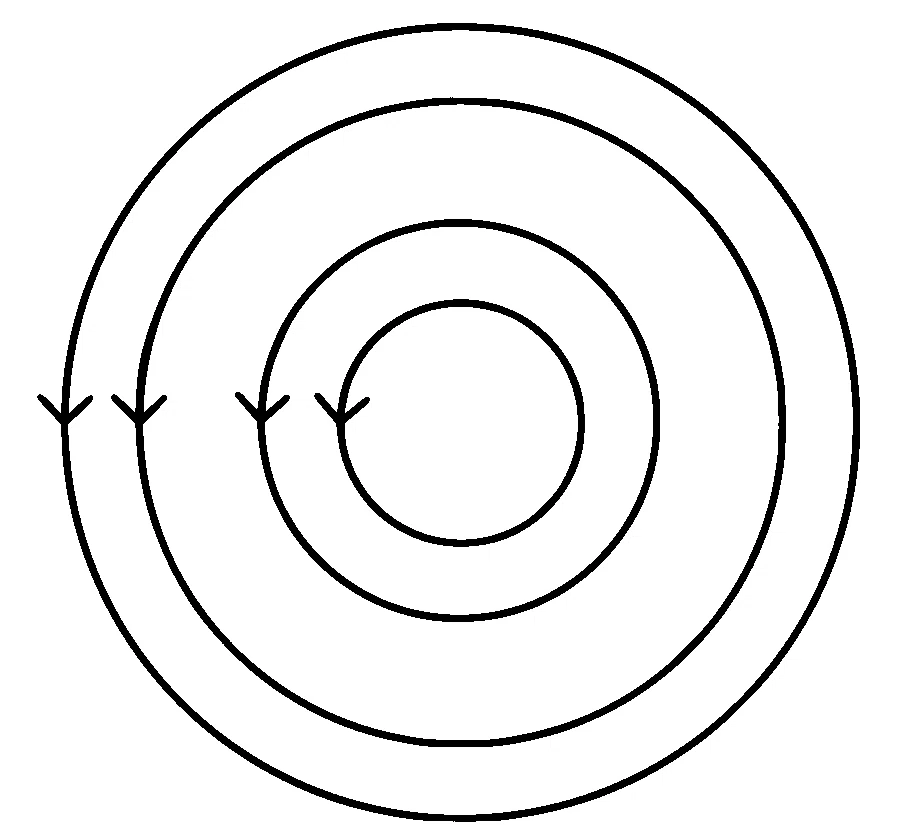

Option C represents closed circular field lines, which can occur for magnetic fields around a current-carrying conductor.
Apply Electric Field Rule
Electric field lines cannot form closed loops, so option C is not valid for electric fields.
Identify Common Valid Pattern

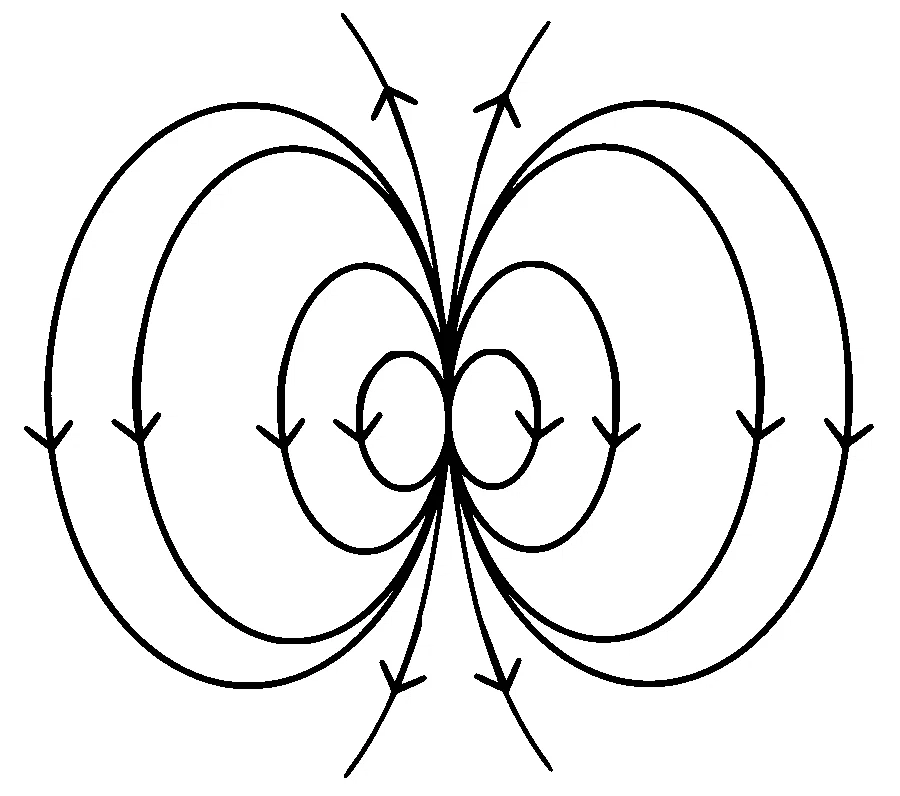

Option D can represent magnetic field lines of a solenoid and electric field lines of a dipole. Hence, the valid pattern for both is D.
