Moving Charges And Magnetism PYQKCET 2025

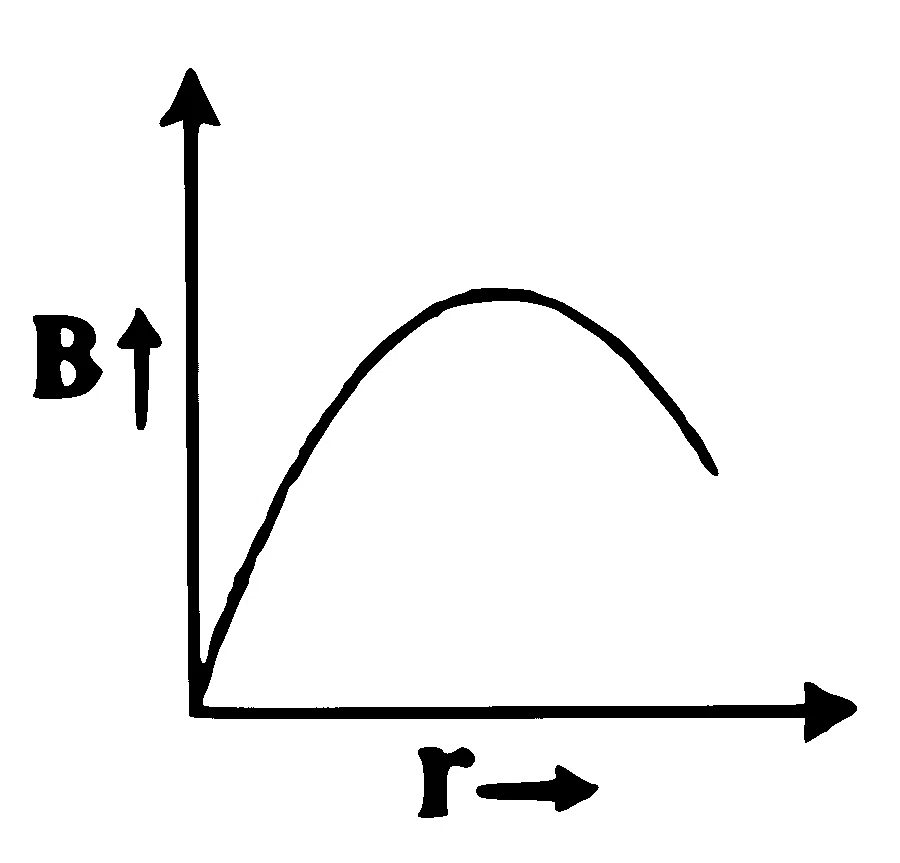

Which of the following graphs represents the variation of magnetic field
Solution
Correct option: B
Correct option: B
Use the Field Formula
For an infinitely long straight current-carrying conductor, the magnetic field at perpendicular distance
Identify the Dependence
Here
Match the Graph
An inverse variation with distance gives a decreasing rectangular hyperbola for the
Conclusion
Therefore, the correct graph is the hyperbolic curve shown in option B.
