Thermodynamics PYQJEE Main 2026 (Online) 21st January Morning Shift

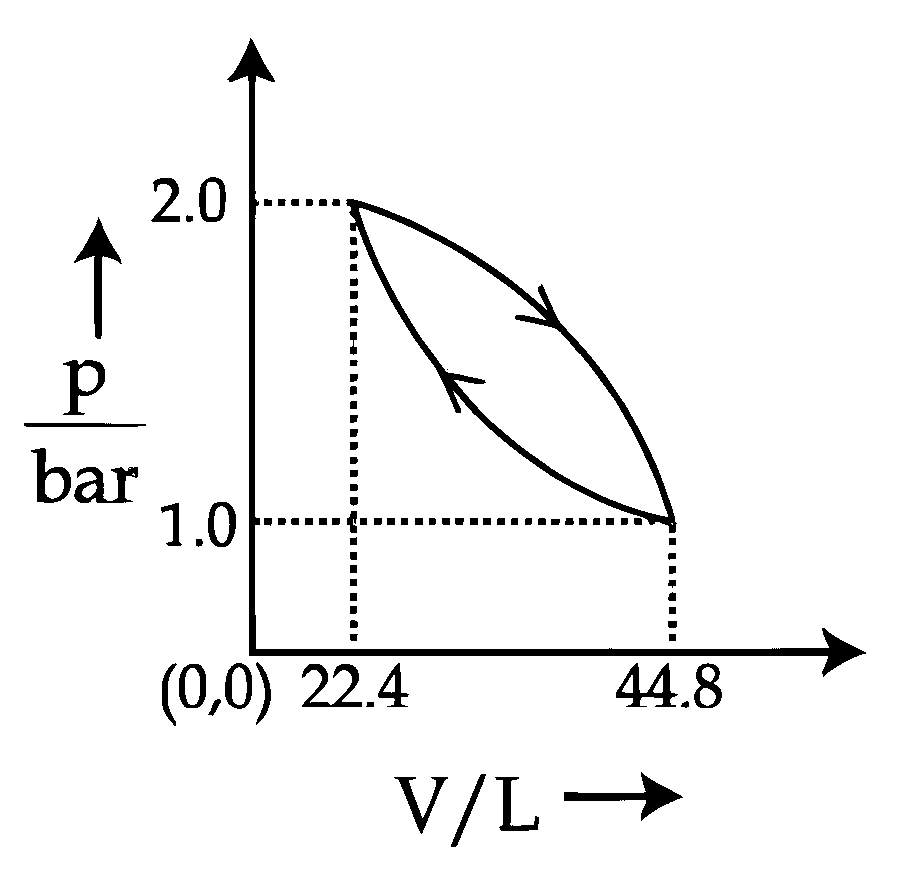

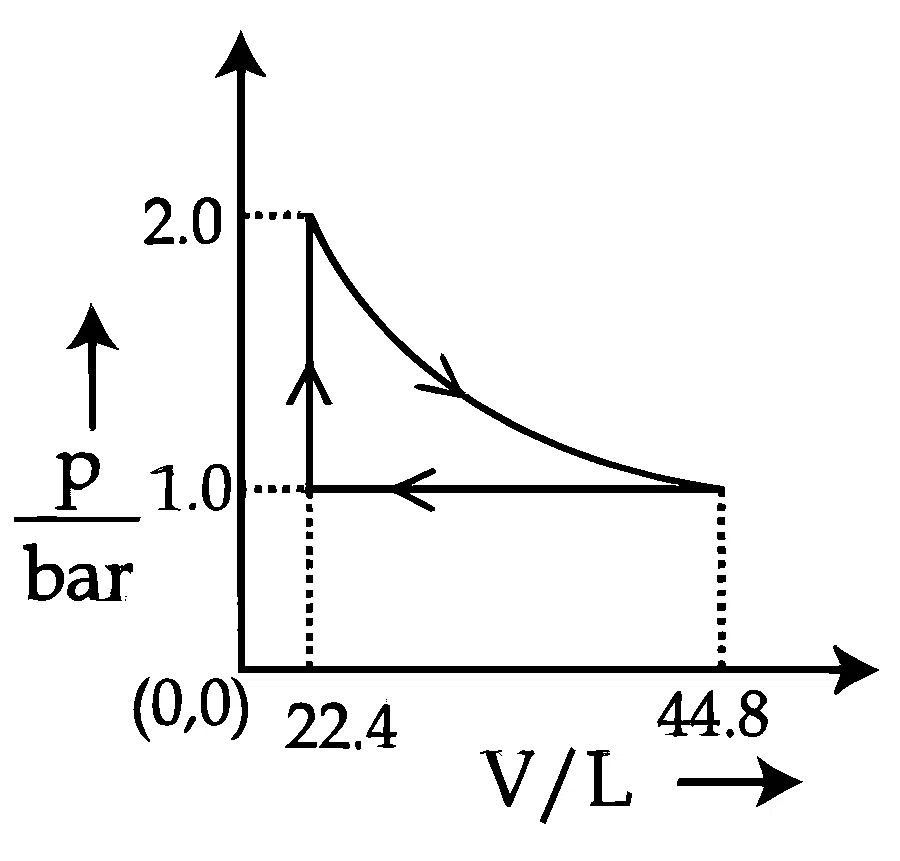

Which of the following graphs between pressure ' p ' versus volume ' V ' represents the maximum work done?
Solution
Correct option: A
The maximum magnitude of work is represented by option A.
Use Area Concept
On a
Check Zero Work Case

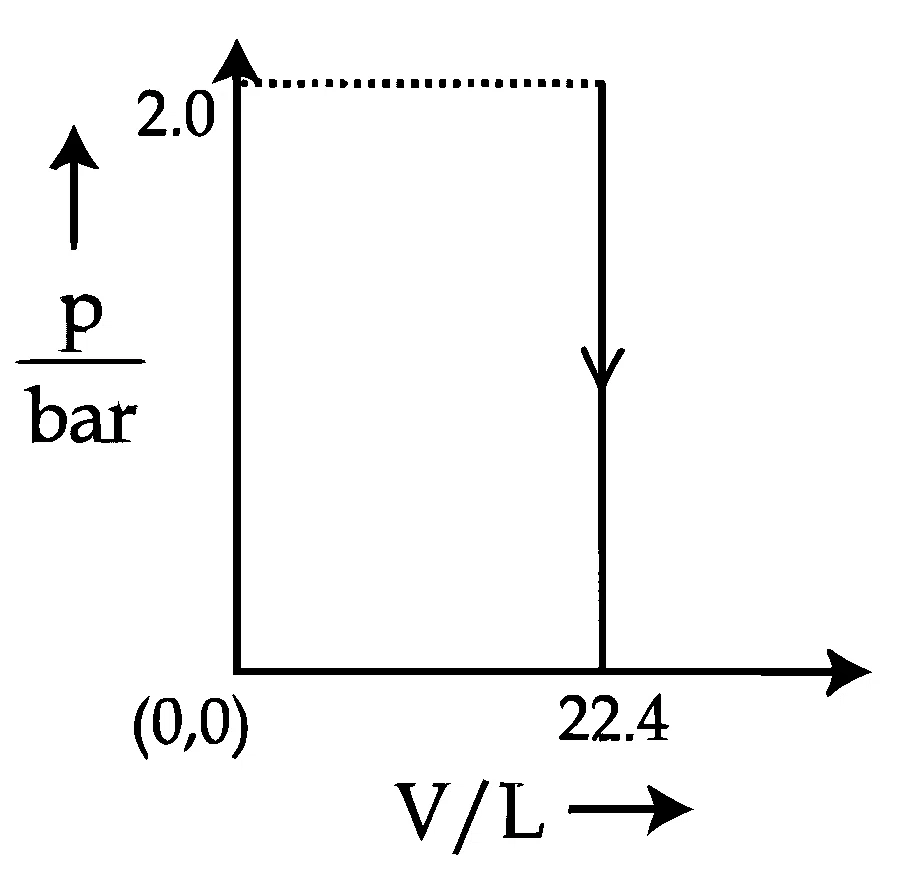

In option B, the area under the graph is zero, so the work done is also zero.
Compare Expansion Graphs
For the remaining graphs, the process corresponds to expansion, so the work has negative sign, but NTA compares the magnitude of work.
Compare Magnitudes

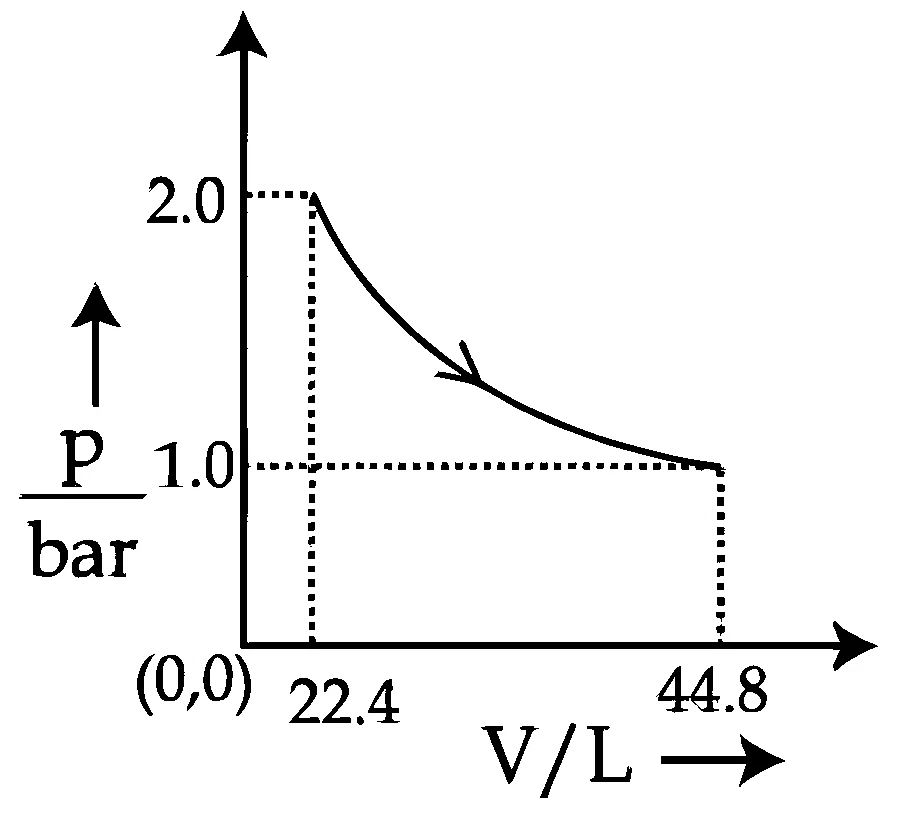

For option A,
The other relevant magnitudes satisfy
Choose Maximum
Since option A gives the largest magnitude of work, the correct option is A.
