Simple Harmonic Motion

JEE Main 2025 (Online) 3rd April Morning Shift

MCQ+4 / -12025
JEE Main 2025 (Online) 3rd April Morning Shift Physics - Simple Harmonic Motion Question 16 English

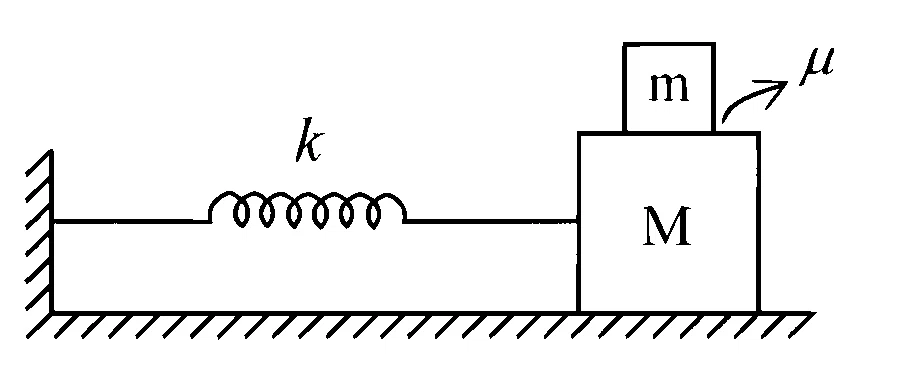

Two blocks of masses $m$ and $M,(M>m)$, are placed on a frictionless table as shown in figure. A massless spring with spring constant k is attached with the lower block. If the system is slightly displaced and released, then ( $\mu=$ coefficient of friction between the two blocks)


A. The time period of small oscillation of the two blocks is $T=2 \pi \sqrt{\frac{(m+M)}{k}}$


B. The acceleration of the blocks is $a=-\frac{k x}{M+m}$ ( $x=$ displacement of the blocks from the mean position)


C. The magnitude of the frictional force on the upper block is $\frac{m \mu|x|}{M+m}$


D. The maximum amplitude of the upper block, if it does not slip, is $\frac{\mu(M+m) g}{k}$


E. Maximum frictional force can be $\mu(\mathrm{M}+\mathrm{m}) \mathrm{g}$.


Choose the correct answer from the options given below :
