Current Electricity PYQJEE Main 2025 (Online) 22nd January Morning Shift

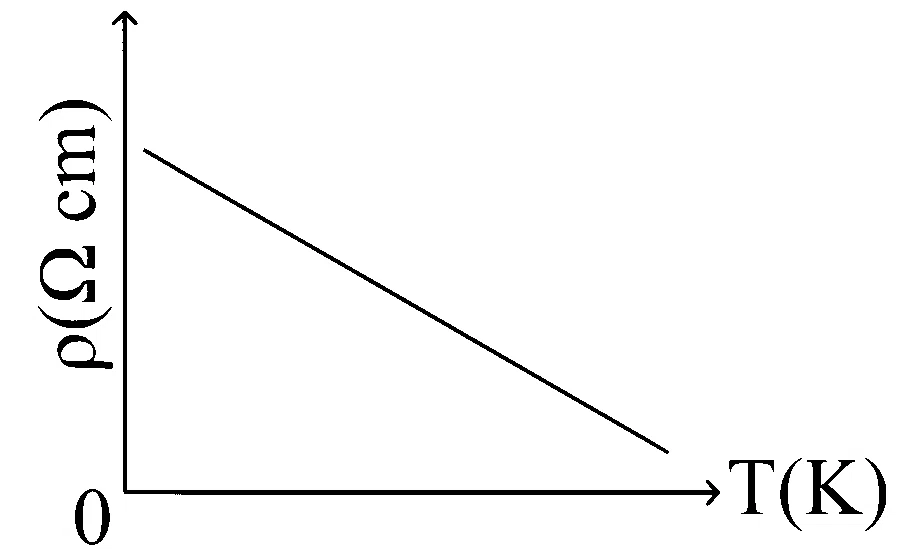

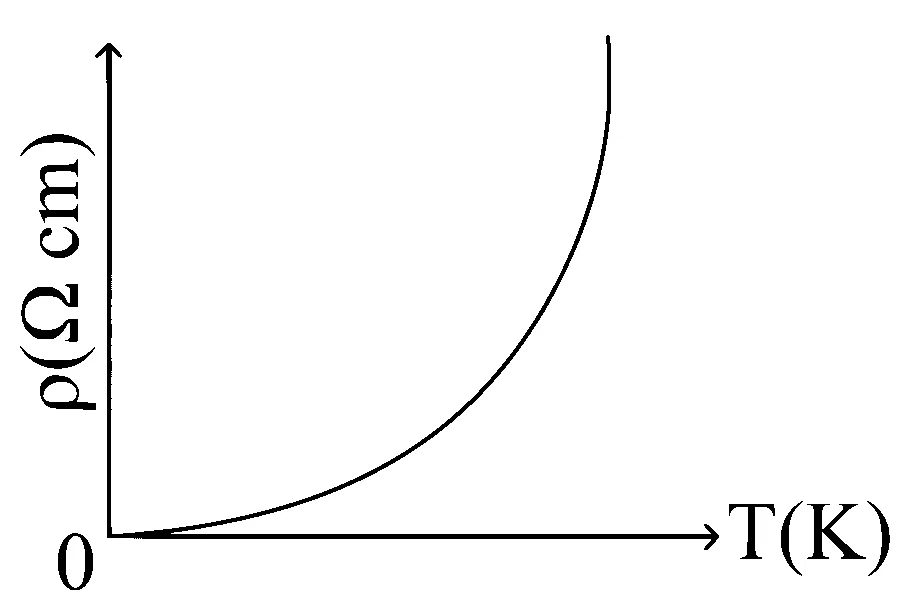

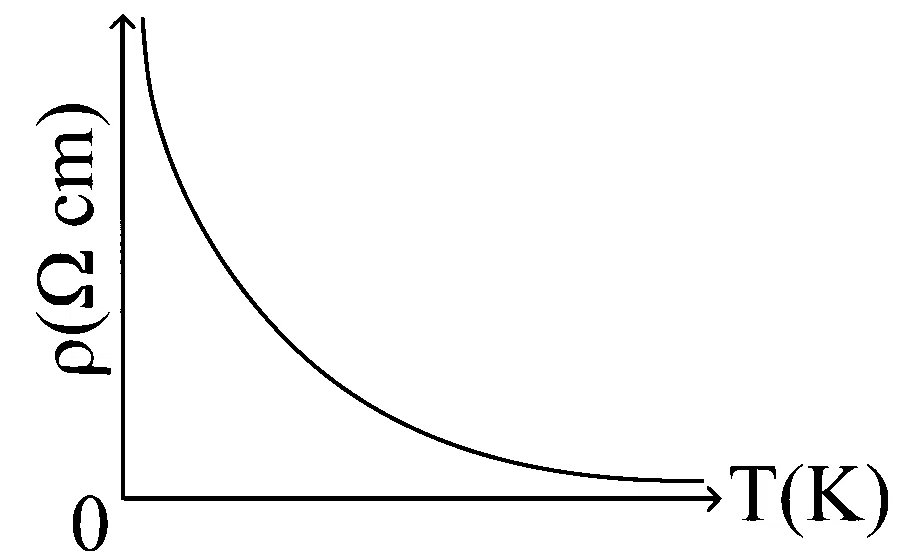

Which of the following resistivity (
Solution
Correct option: D
Answer: D
Step 1
Wire-bound standard resistors are made using materials such as nichrome, manganin, and constantan.
Step 2
For a standard resistor, resistance should remain almost unchanged with temperature, so the material must have very small temperature dependence of resistivity.
Step 3
Therefore, the suitable
Step 4
Among the given curves, option D shows this required weak variation of resistivity with temperature.
