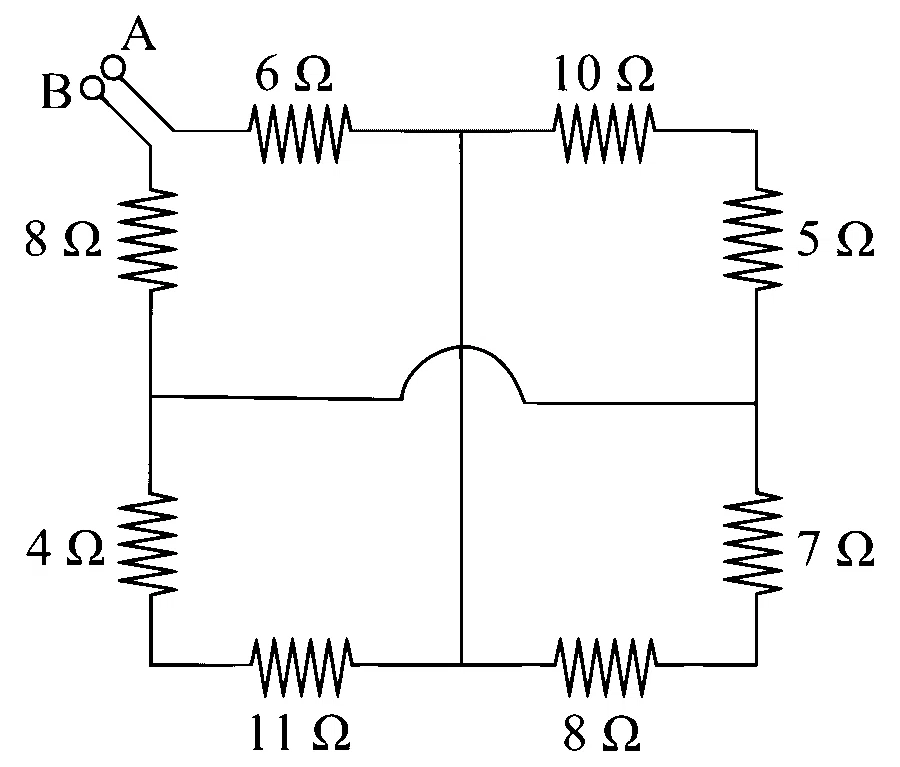

The equivalent resistance between A and B is :

Solution
Correct option: C
The equivalent resistance between A and B is
Step 1
Redraw the given network by identifying the same-potential junctions.
Step 2
After simplification, the effective path between A and B contains three resistances in series:
Step 3
For series resistances, add them directly:
Step 4
Thus,
So, the correct option is C.
