Electronic Devices PYQJEE Main 2024 (Online) 6th April Morning Shift
MCQ+4 / -12024

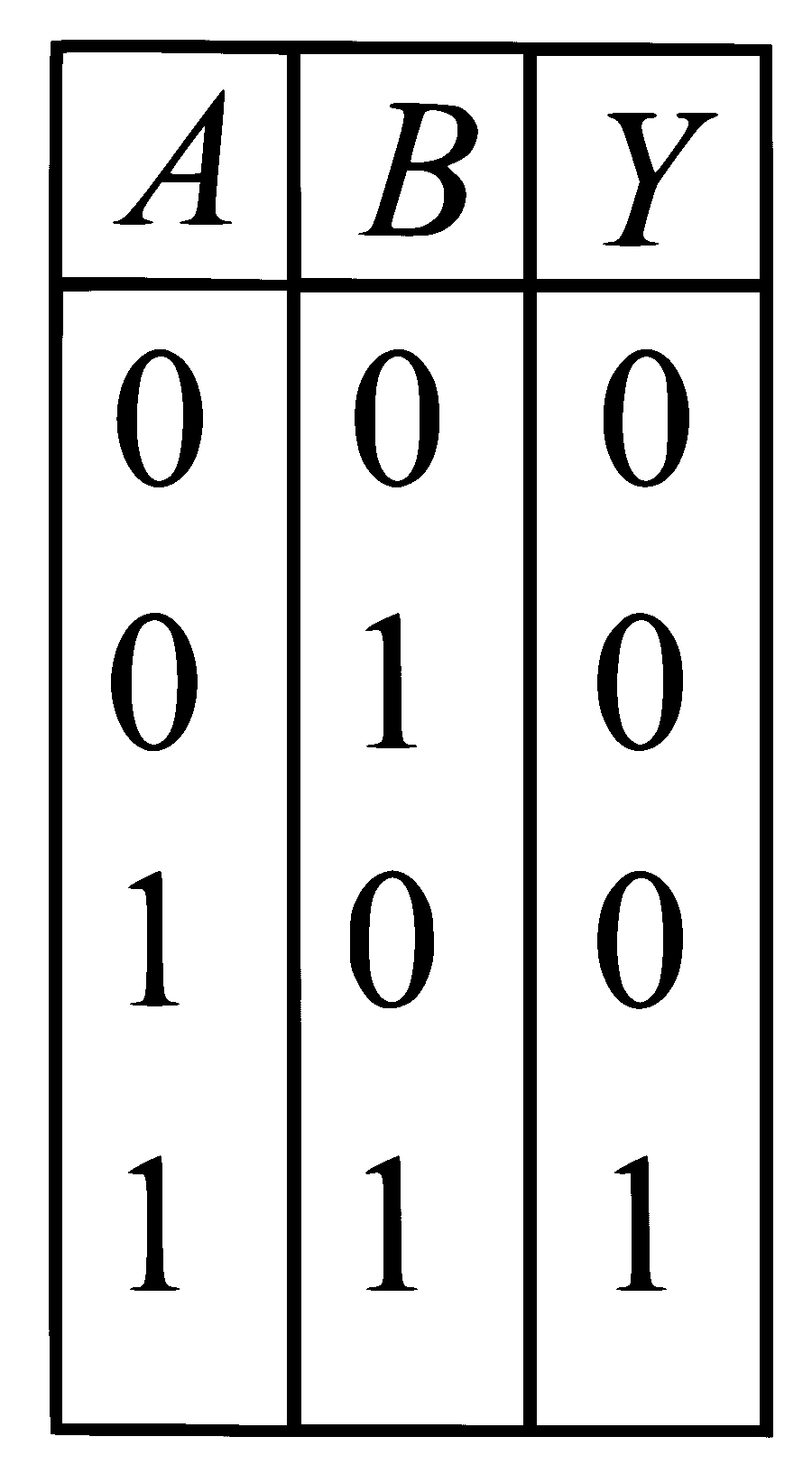

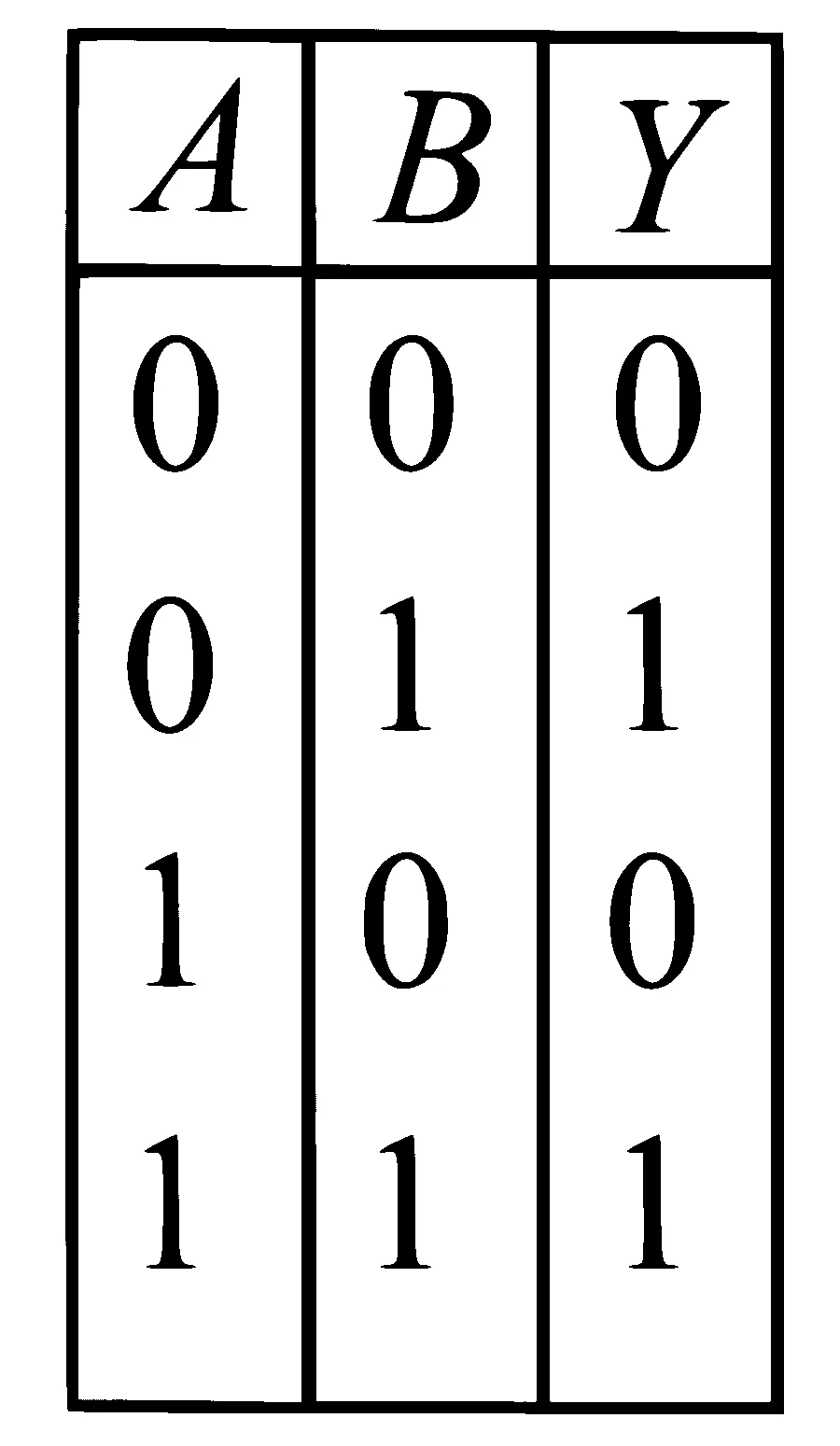

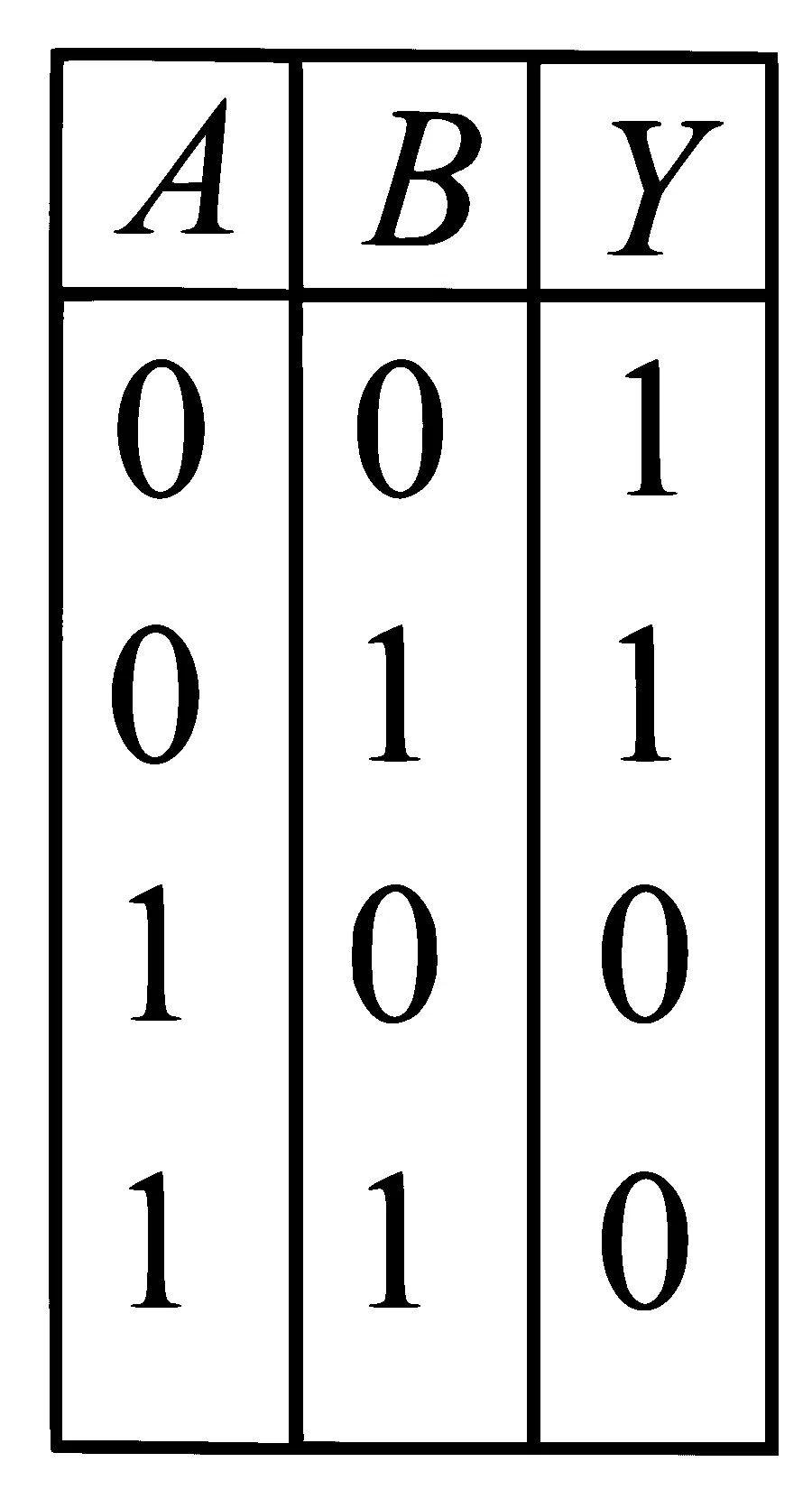

The correct truth table for the following logic circuit is :

Solution
Correct option: B
Answer: B
Identify the Gates
The circuit uses a combination of NOT, OR, and AND gates.
Track Each Input Case
Evaluate the output
Form the Output Column

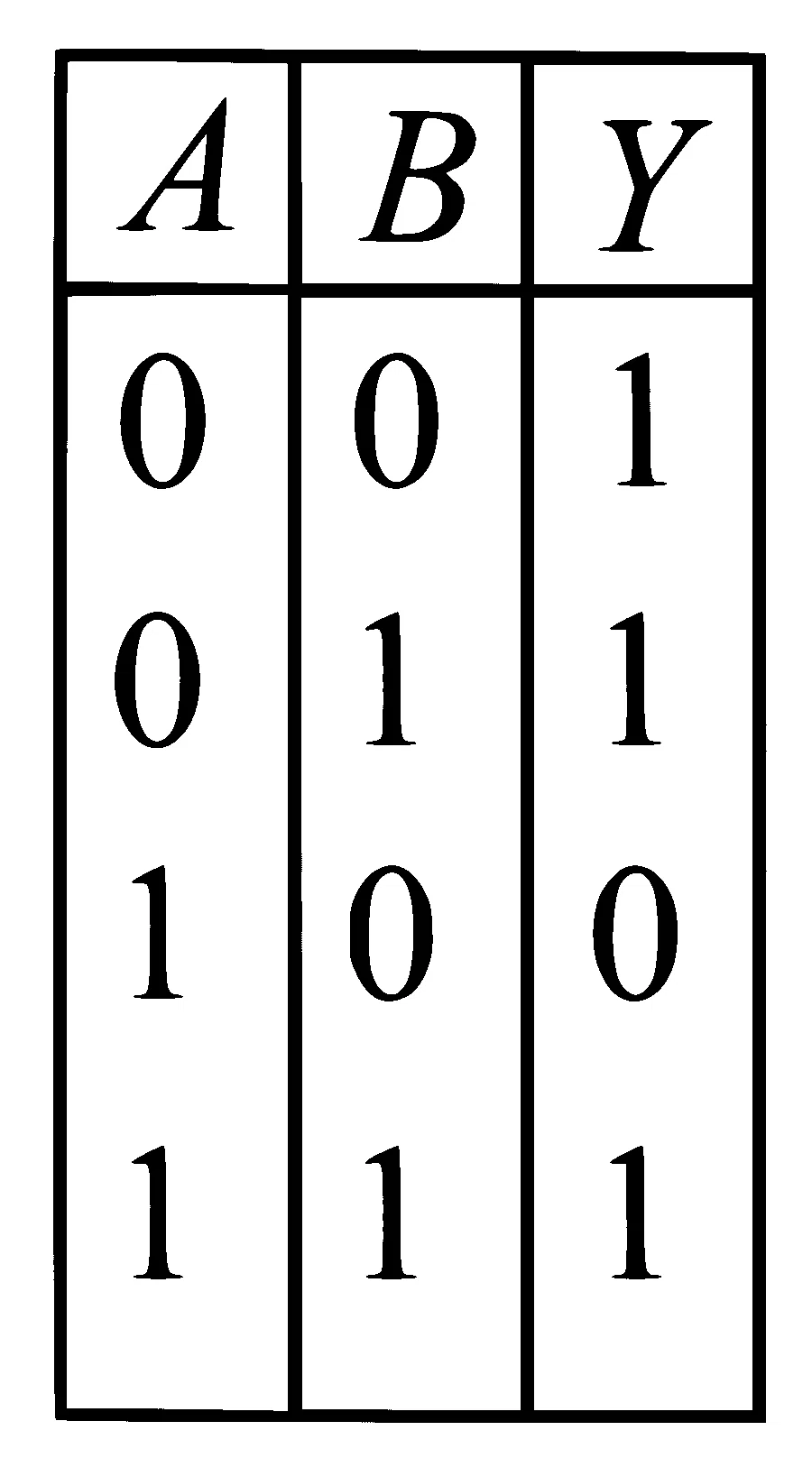

The resulting truth table is:
| 0 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
Match with Options
This truth table matches option B.
