Thermodynamics PYQJEE Main 2024 (Online) 30th January Morning Shift

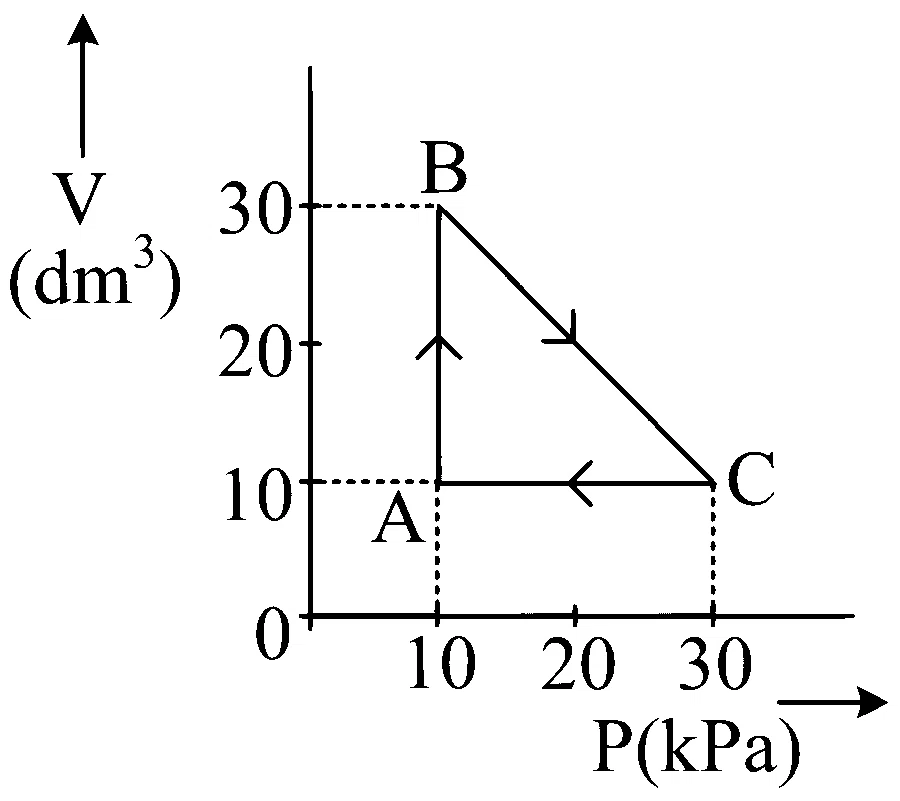

An ideal gas undergoes a cyclic transformation starting from the point A and coming back to the same point by tracing the path
Solution
Answer: 200
Identify Work From Graph
For a cyclic process on a pressure-volume type graph, the net work done equals the area enclosed by the cycle.
Check Sign
The path is clockwise, so the work done by the gas is positive.
Find Enclosed Area
The enclosed region is a triangle with base
Convert Units
Using the given graph units,
Hence, the total work done is
