Simple Harmonic Motion PYQJEE Main 2023 (Online) 13th April Morning Shift

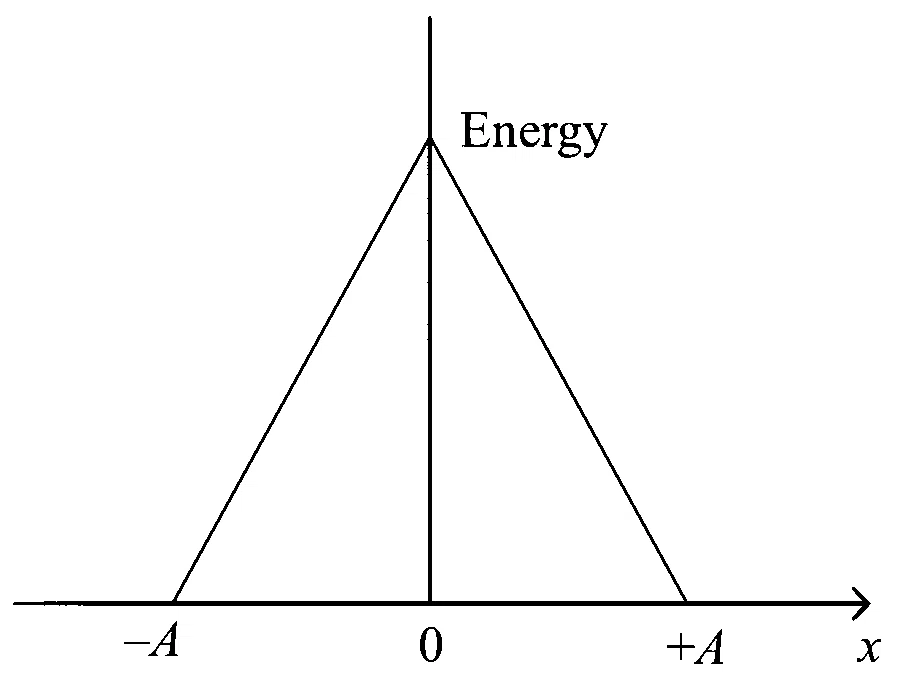

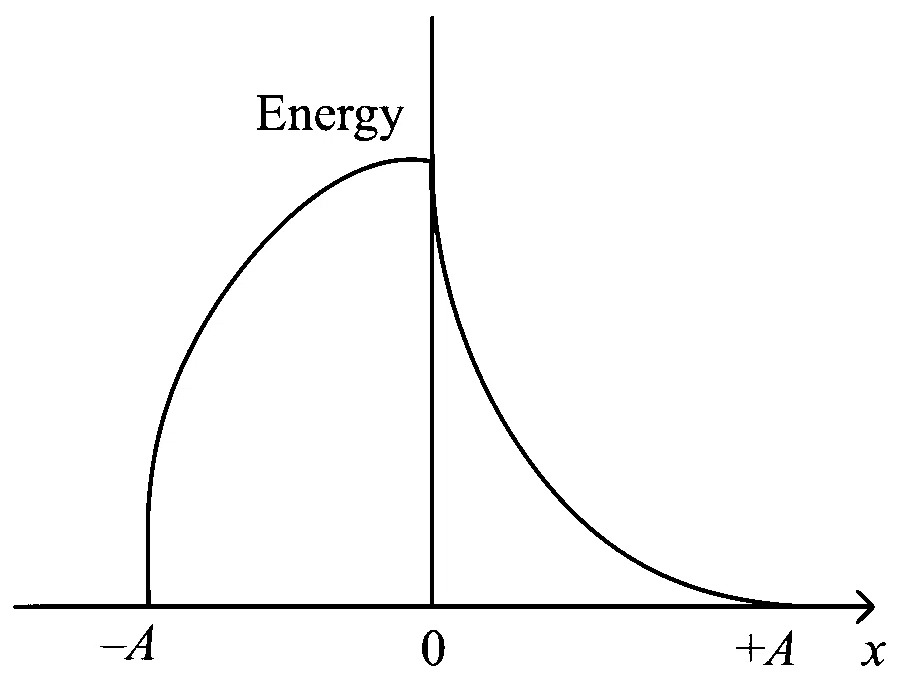

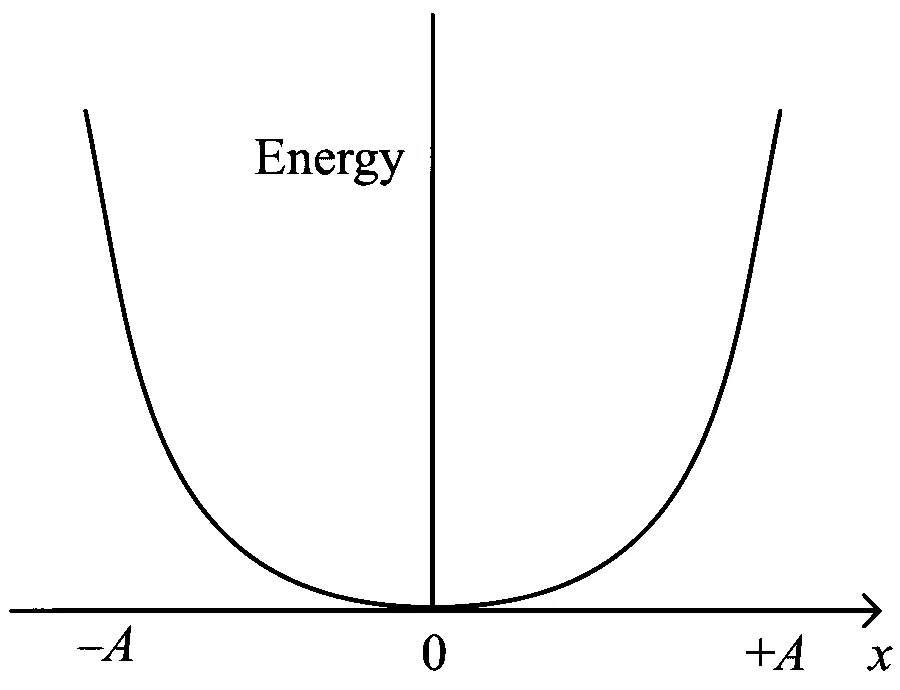

Which graph represents the difference between total energy and potential energy of a particle executing SHM vs it's distance from mean position ?
Solution

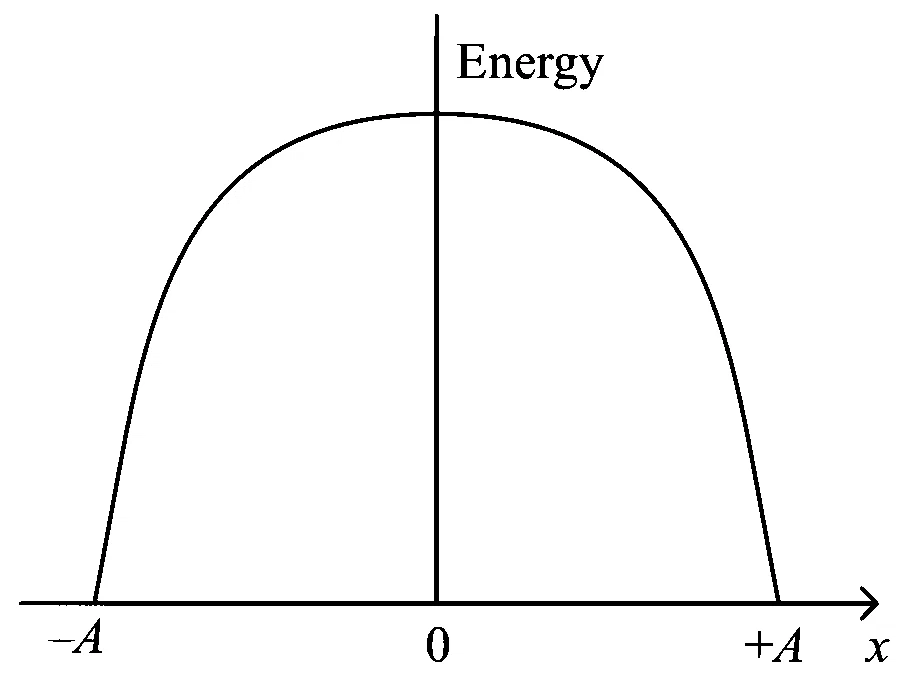

Correct option: A
The graph is a downward-opening parabola. Hence, the correct option is A.
Relate the required quantity
The question asks for total energy minus potential energy:
Use SHM energy expression
For a particle in SHM, kinetic energy at displacement
Identify graph shape
This is of the form constant minus a term proportional to
Choose the graph
Therefore, the required graph is option A.
