JEE Main
Heat And Thermodynamics PYQJEE Main 2023 (Online) 24th January Evening Shift

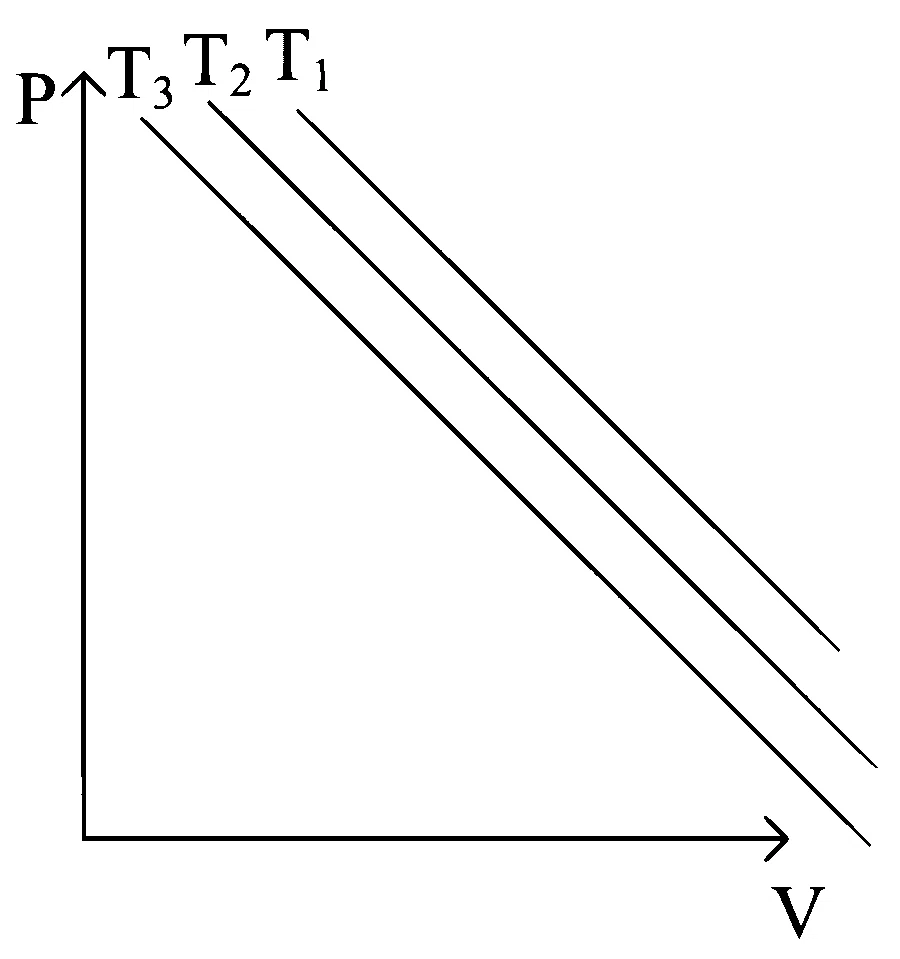

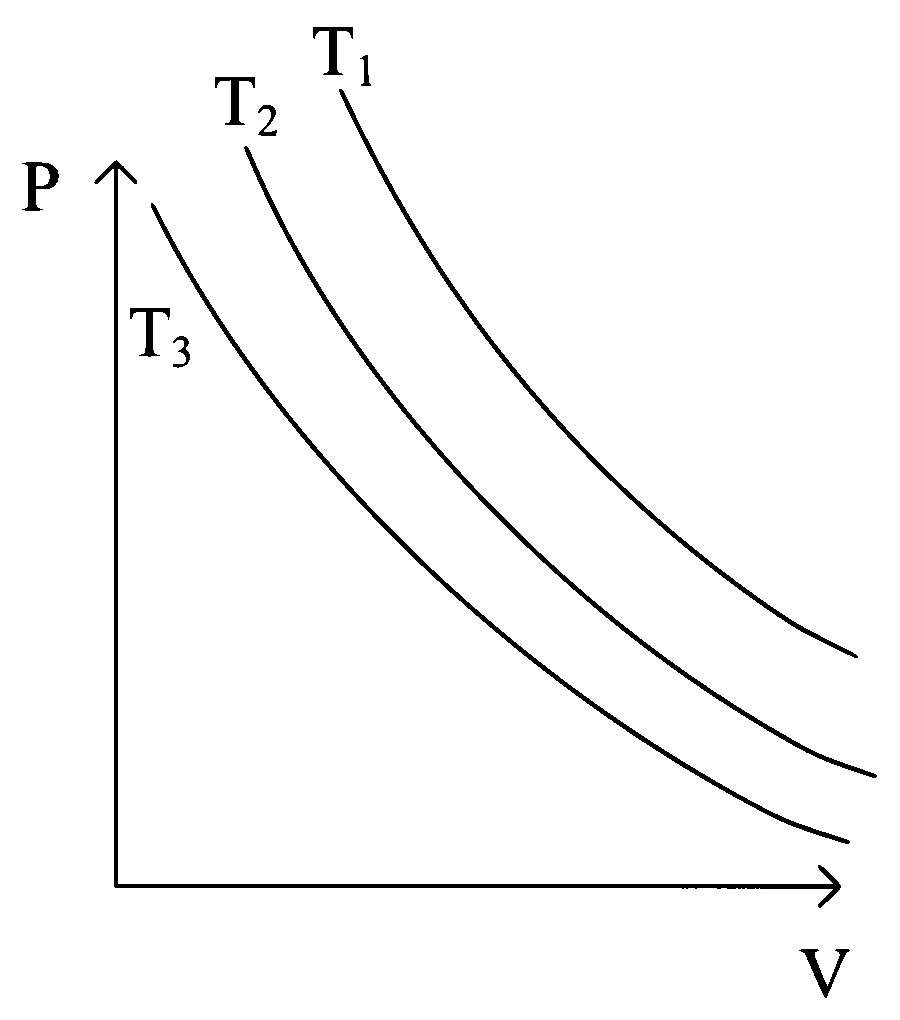

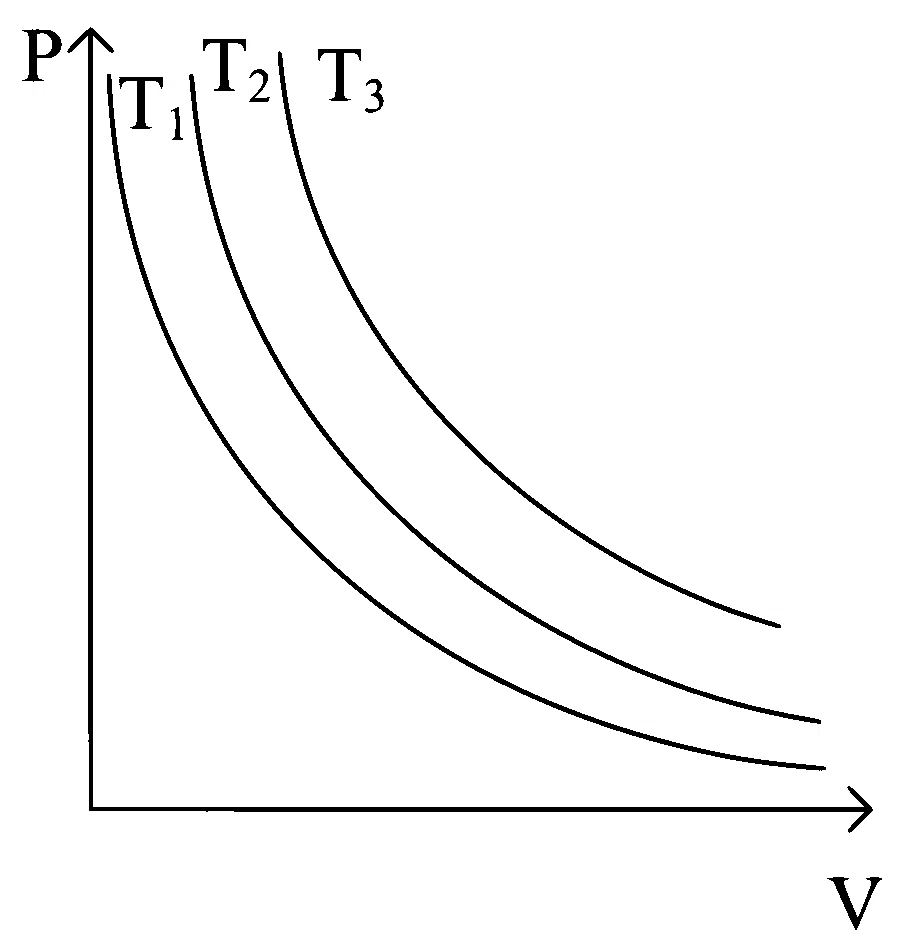

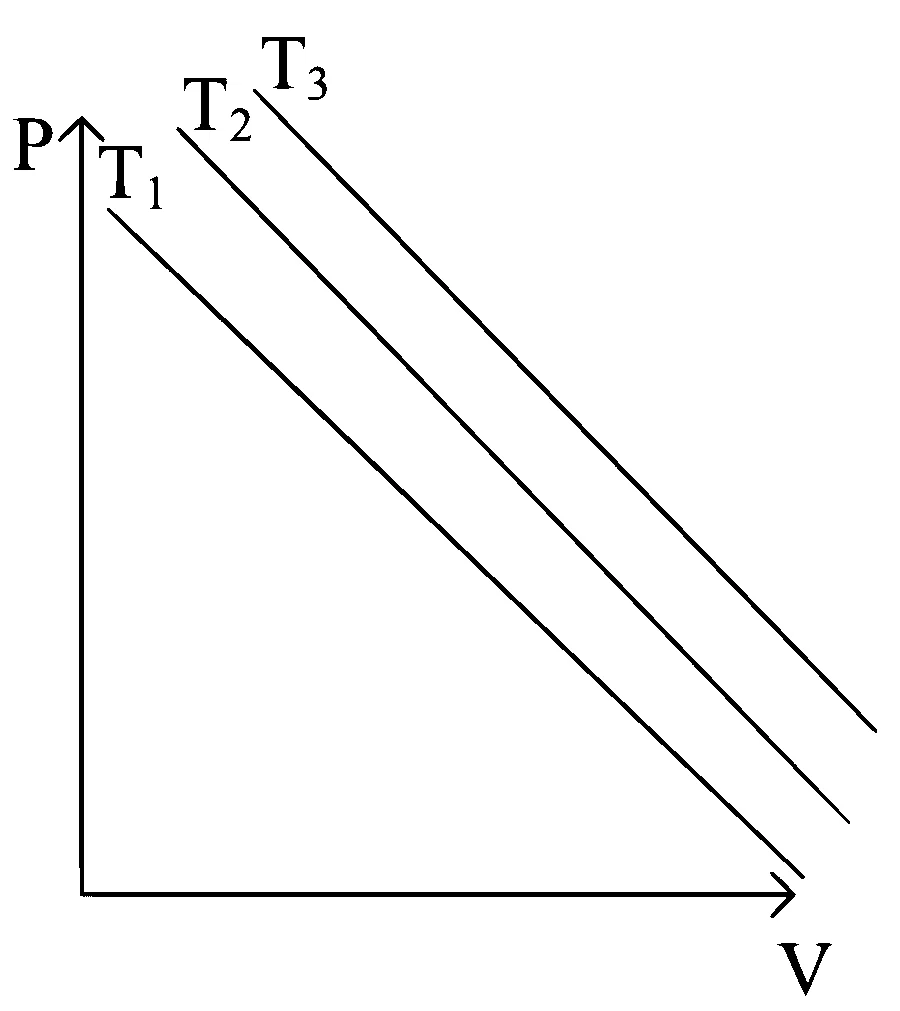

In an Isothermal change, the change in pressure and volume of a gas can be represented for three different temperature;
Solution
Correct option: B
Correct option: B
Step 1
For an isothermal process of an ideal gas, temperature remains constant and the equation is
Step 2
So, the
Step 3
Compare the curves using an isobaric line, i.e. a horizontal line where pressure is the same.
Step 4
At the same pressure, higher temperature gives larger volume since
Step 5
This arrangement matches option B.
