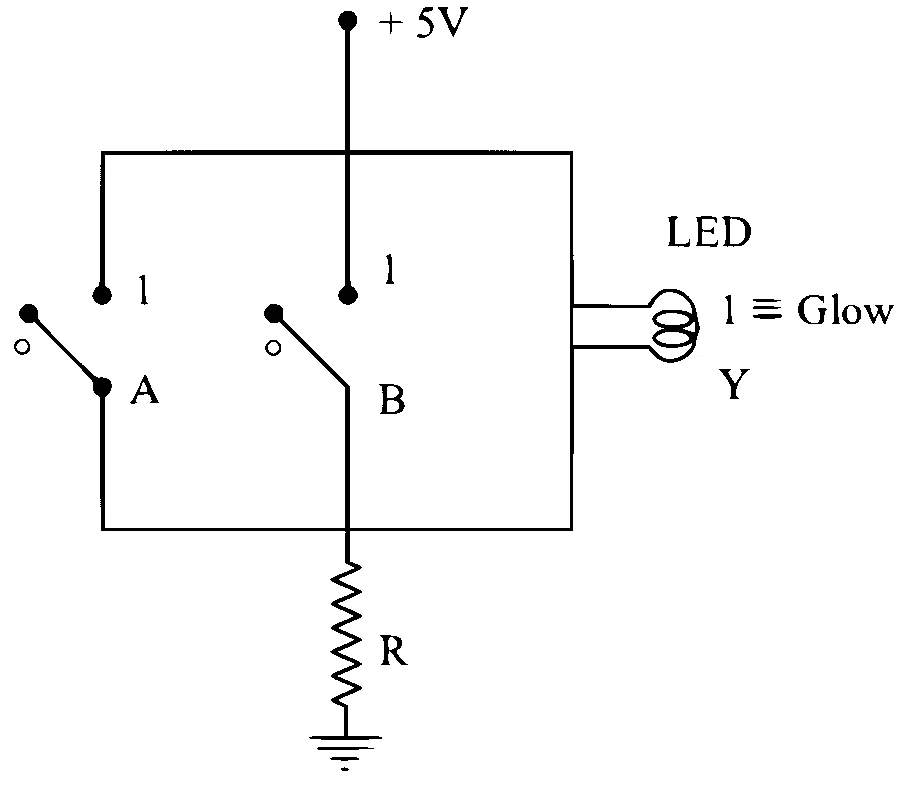

Name the logic gate equivalent to the diagram attached

Solution
Correct option: A
The equivalent logic gate is NOR.
Check Output Pattern
For the given circuit, evaluate the output
Write Truth Table
The circuit gives
Match With Standard Gate
The output is
Conclusion
This is exactly the truth table of a NOR gate. Hence, the answer is NOR.
