Alternating Current PYQJEE Main 2023 (Online) 11th April Morning Shift

MCQ+4 / -12023

JEE Main 2023 (Online) 11th April Morning Shift Physics - Alternating Current Question 53 English

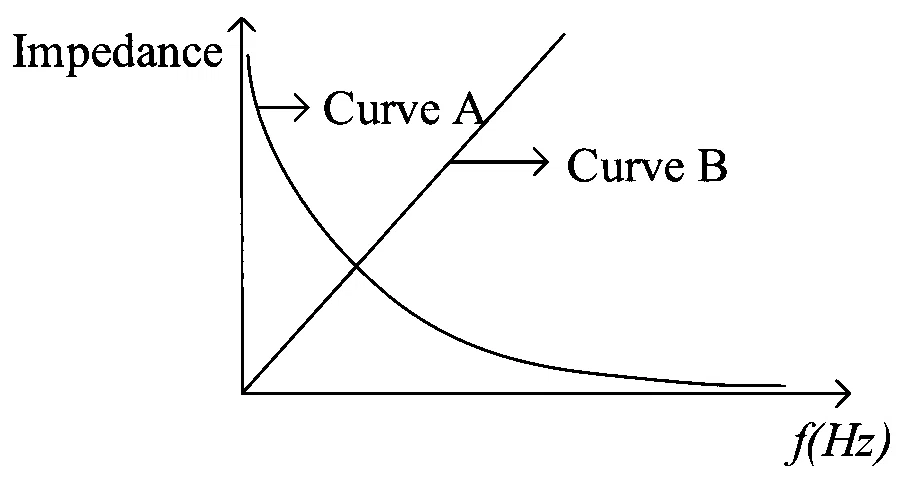

As per the given graph, choose the correct representation for curve A and curve B.


Where XC= reactance of pure capacitive circuit connected with A.C. source


XL= reactance of pure inductive circuit connected with A.C. source


R = impedance of pure resistive circuit connected with A.C. source.


Z= Impedance of the LCR series circuit }
