Electronic Devices PYQJEE Main 2022 (Online) 26th June Morning Shift
MCQ+4 / -12022

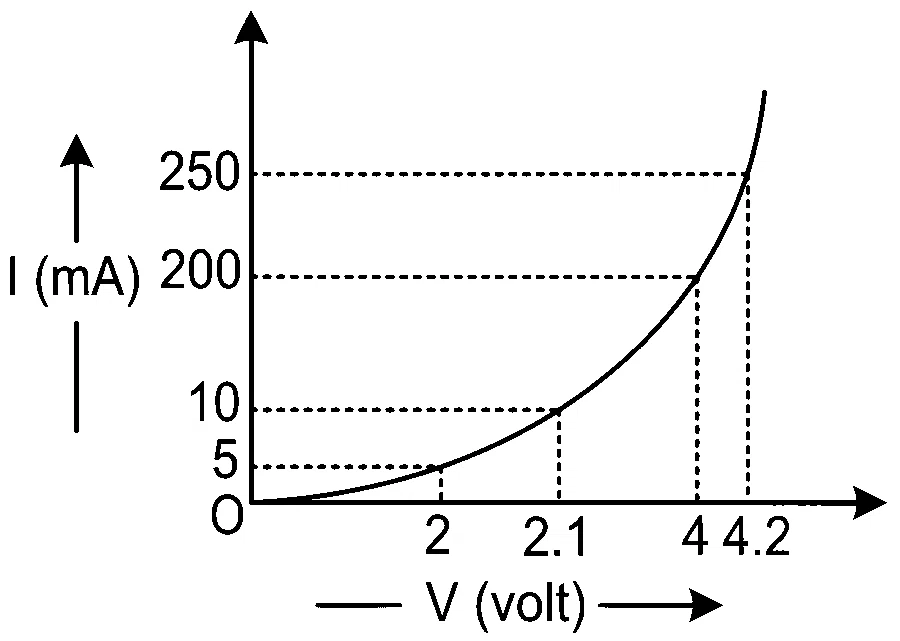

The I-V characteristics of a p-n junction diode in forward bias is shown in the figure. The ratio of dynamic resistance, corresponding to forward bias voltage of 2 V and 4 V respectively, is :

Solution
Correct option: B
Answer: 5 : 1
Use Dynamic Resistance
For a diode I-V curve, the dynamic resistance at a point is found from the small change around that point:
At 2 V
From the graph near
Calculate \(R_2\)
At 4 V
Similarly, near
Take the Ratio
So, the required ratio is
