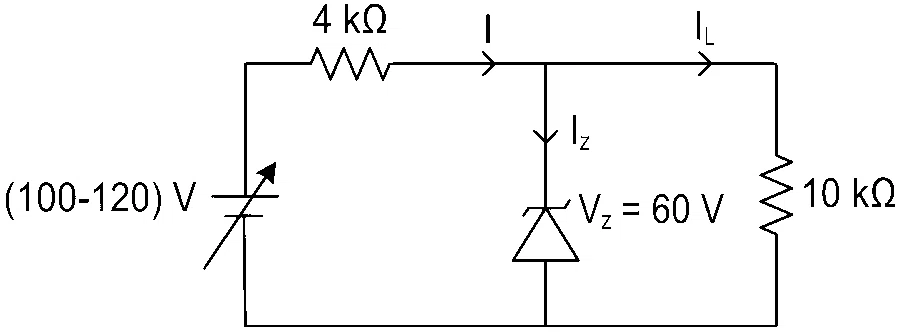

In the circuit shown below, maximum zener diode current will be _________

Solution
Answer: 9
Maximum zener current = 9 mA
Find the source current
The series branch has
Find the load current
The load resistance is
Use current splitting
The source current divides into load current and zener current:
Calculate zener current
Therefore, the maximum zener diode current is
