Alternating Current PYQJEE Main 2021 (Online) 1st September Evening Shift
MCQ+4 / -12021

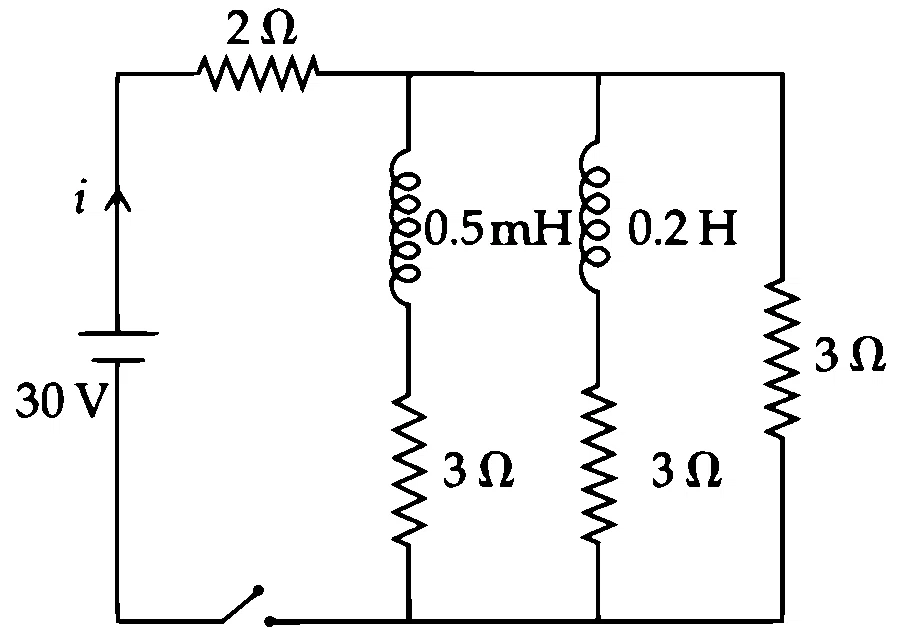

For the given circuit the current i through the battery when the key in closed and the steady state has been reached is __________.


Solution
Correct option: C
Answer: C
Steady-state behaviour
After the key is closed and steady state is reached, the potential difference across the inductor is zero.
Find equivalent resistance
The circuit reduces to three
Simplify the circuit
Thus,
With the remaining series resistance, the total resistance becomes
Calculate current
Using Ohm's law,
