JEE Advanced 2022 Paper 1 Online

MCQ+3 / -12022

List I describes four systems, each with two particles $A$ and $B$ in relative motion as shown in figures. List II gives possible magnitudes of their relative velocities (in $m s^{-1}$ ) at time $t=\frac{\pi}{3} s$.



.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-7btt{border-color:inherit;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-0pky{border-color:inherit;text-align:left;vertical-align:top}






























List-I List-II

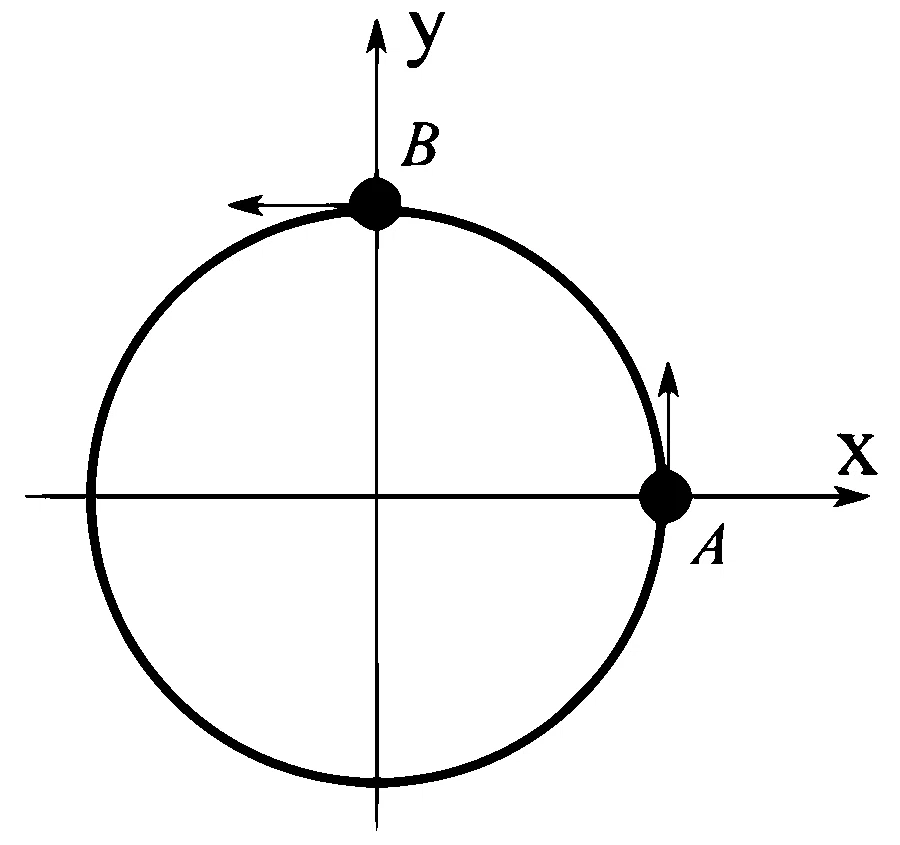

(I) $A$ and $B$ are moving on a horizontal circle of radius $1 \mathrm{~m}$ with uniform angular speed $\omega=1 \mathrm{rad} \mathrm{s}^{-1}$. The initial angular positions of $A$ and $B$ at time $t=0$ are $\theta=0$ and $\theta=\frac{\pi}{2}$, respectively.
JEE Advanced 2022 Paper 1 Online Physics - Rotational Motion Question 32 English 1
(P) $\frac{\sqrt{3}+1}{2}$

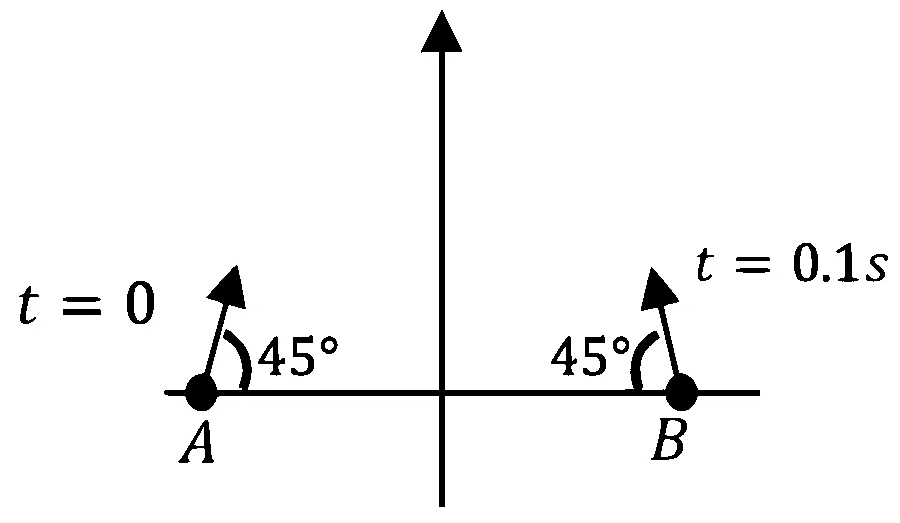

(II) Projectiles $A$ and $B$ are fired (in the same vertical plane) at $t=0$ and $t=0.1 \mathrm{~s}$ respectively, with the same speed $v=\frac{5 \pi}{\sqrt{2}} \mathrm{~m} \mathrm{~s}^{-1}$ and at $45^{\circ}$ from the horizontal plane. The initial separation between $A$ and $B$ is large enough so that they do not collide. $\left(g=10 \mathrm{~ms}^{-2}\right)$.
JEE Advanced 2022 Paper 1 Online Physics - Rotational Motion Question 32 English 2
(Q) $\frac{\sqrt{3}-1}{\sqrt{2}}$

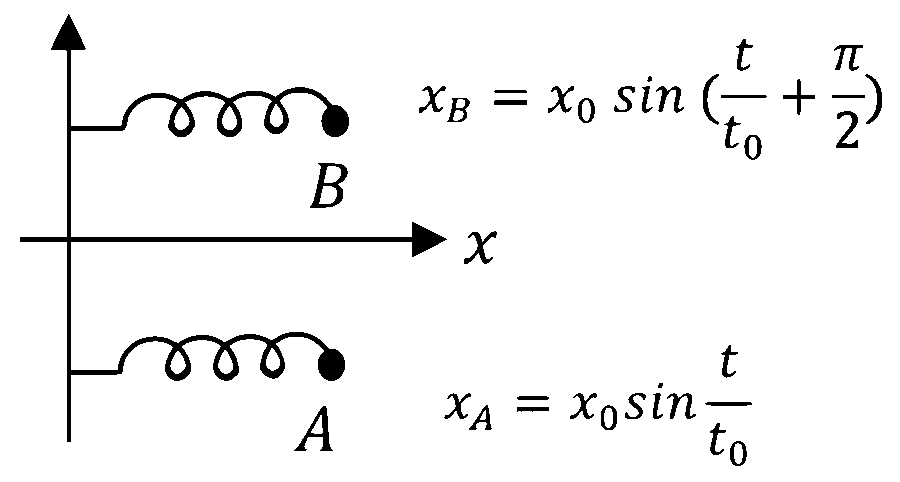

(III) Two harmonic oscillators $A$ and $B$ moving in the $x$ direction according to $x_{A}=x_{0} \sin \frac{t}{t_{0}}$ and $x_{B}=x_{0} \sin \left(\frac{t}{t_{0}}+\frac{\pi}{2}\right)$ respectively, starting from $t=0$. Take $x_{0}=1 \mathrm{~m}, t_{0}=1 \mathrm{~s}$.
JEE Advanced 2022 Paper 1 Online Physics - Rotational Motion Question 32 English 3
(R) $\sqrt{10}$

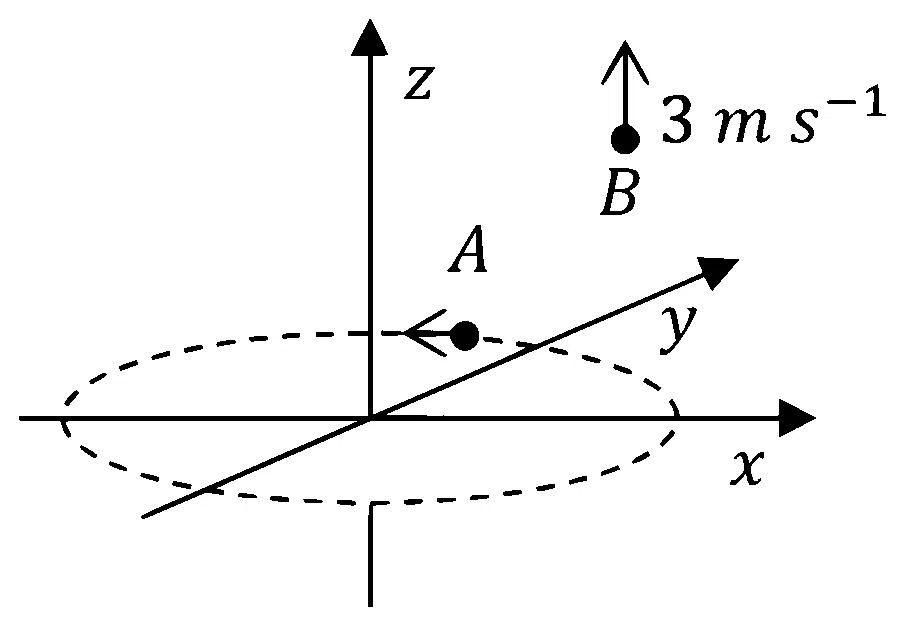

(IV) Particle $A$ is rotating in a horizontal circular path of radius $1 \mathrm{~m}$ on the $x y$ plane, with constant angular speed $\omega=1 \mathrm{rad} \mathrm{s}^{-1}$. Particle $B$ is moving up at a constant speed $3 \mathrm{~m} \mathrm{~s}^{-1}$ in the vertical direction as shown in the figure. (Ignore gravity.)
JEE Advanced 2022 Paper 1 Online Physics - Rotational Motion Question 32 English 4
(S) $\sqrt{2}$
(T) $\sqrt{25\pi^{2}+1}$


Which one of the following options is correct?
