Jee Advanced

Geometrical Optics

JEE Advanced 2022 Paper 1 Online

MCQ+3 / -12022

List I contains four combinations of two lenses (1 and 2) whose focal lengths (in $\mathrm{cm}$ ) are indicated in the figures. In all cases, the object is placed $20 \mathrm{~cm}$ from the first lens on the left, and the distance between the two lenses is $5 \mathrm{~cm}$. List II contains the positions of the final images.



.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-7btt{border-color:inherit;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-0pky{border-color:inherit;text-align:left;vertical-align:top}






























List-I List-II

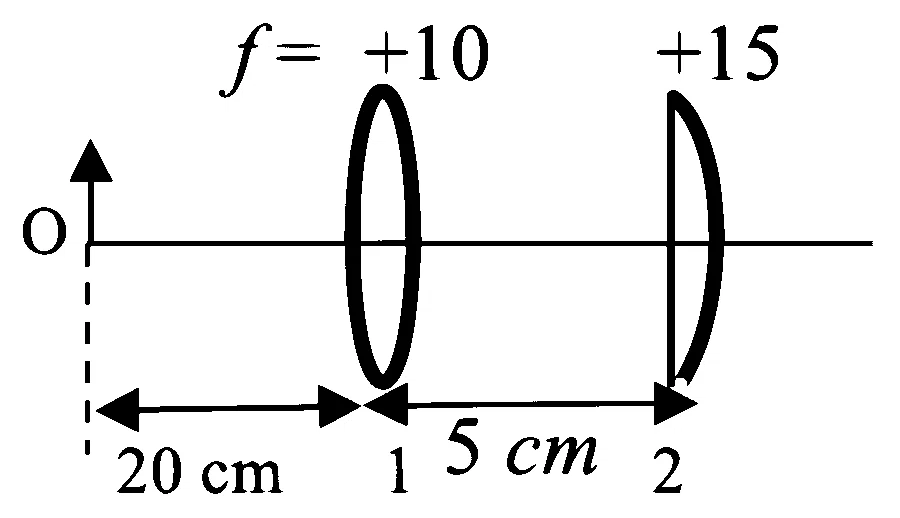

(I) JEE Advanced 2022 Paper 1 Online Physics - Geometrical Optics Question 31 English 1 (P) Final image is formed at $7.5 \mathrm{~cm}$ on the right side of lens 2 .

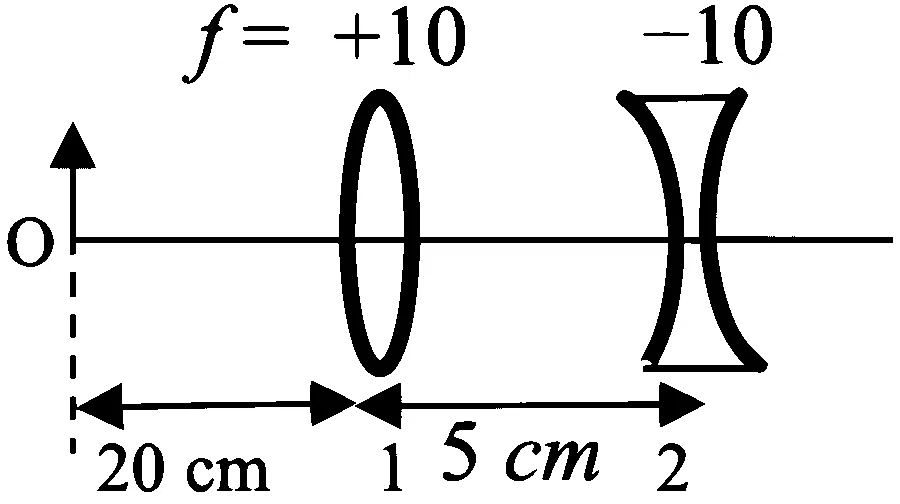

(II) JEE Advanced 2022 Paper 1 Online Physics - Geometrical Optics Question 31 English 2 (Q) Final image is formed at $60.0 \mathrm{~cm}$ on the right side of lens 2 .

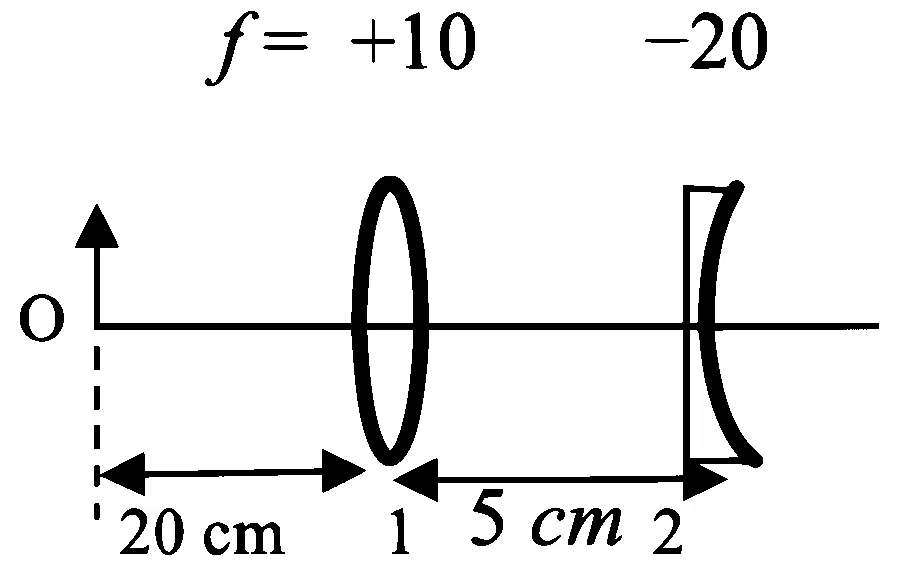

(III) JEE Advanced 2022 Paper 1 Online Physics - Geometrical Optics Question 31 English 3 (R) Final image is formed at $30.0 \mathrm{~cm}$ on the left side of lens $2 .$

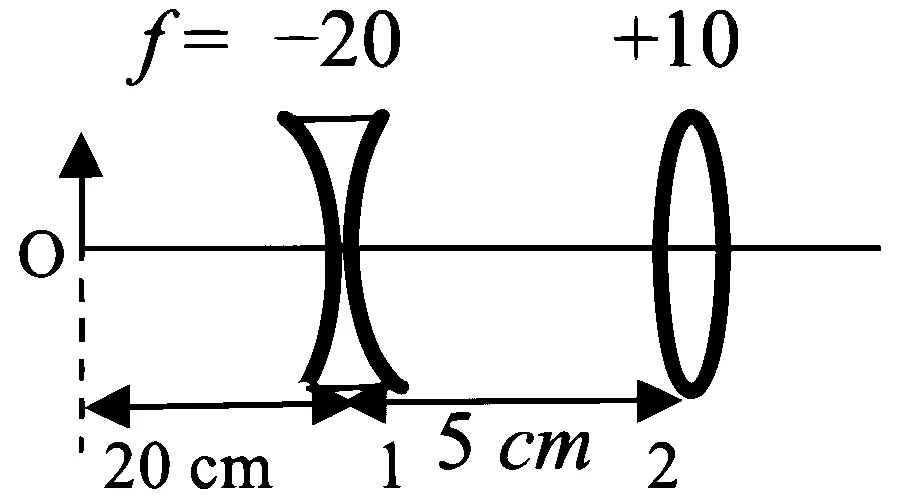

(IV) JEE Advanced 2022 Paper 1 Online Physics - Geometrical Optics Question 31 English 4 (S) Final image is formed at $6.0 \mathrm{~cm}$ on the right side of lens 2 .
(T) Final image is formed at $30.0 \mathrm{~cm}$ on the right side of lens 2 .


Which one of the following options is correct?
