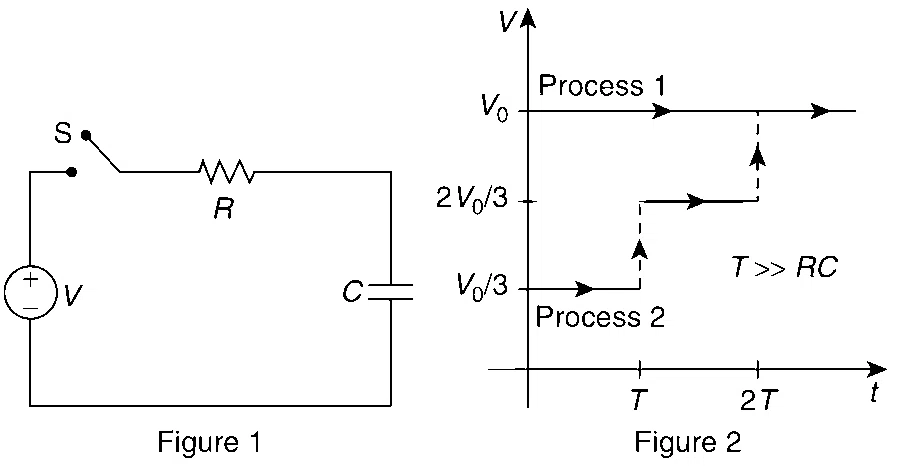

Consider a simple RC circuit as shown in Figure 1.
Process 1 : In the circuit the switch S is closed at t = 0 and the capacitor is fully charged to voltage V0 (i.e. charging continues for time T >> RC). In the process some dissipation (ED) occurs across the resistance R. The amount of energy finally stored in the fully charged capacitor is EC.
Process 2 : In a different process the voltage is first set to and maintained for a charging time T >> RC. Then, the voltage is raised to without discharging the capacitor and again maintained for a time T >> RC. The process is repeated one more time by raising the voltage to V0 and the capacitor is charged to the same final voltage V0 as in Process 1.
These two processes are depicted in Figure 2.

Process 1 : In the circuit the switch S is closed at t = 0 and the capacitor is fully charged to voltage V0 (i.e. charging continues for time T >> RC). In the process some dissipation (ED) occurs across the resistance R. The amount of energy finally stored in the fully charged capacitor is EC.
Process 2 : In a different process the voltage is first set to
These two processes are depicted in Figure 2.

In Process 1, the energy stored in the capacitor EC and heat dissipated across resistance ED are related by
Solution
Correct option: B
Correct option: B
Use supplied energy
For this charging process, the energy supplied by the source is
Find stored energy
The energy finally stored in the capacitor is
Apply energy balance
The heat dissipated in the resistance is the supplied energy minus the stored energy:
Compare both energies
Since
