Surface Chemistry PYQIIT-JEE 2012 Paper 2 Offline
The given graphs/data I, II, III and IV represent general trends observed for different physisorption and chemisorption processes under mild conditions of temperature and pressure. Which of the following choice(s) about I, II, III and IV is(are) correct?




Solution
Correct option: A, C
Correct answers: A, C
Use adsorption equilibrium
For physisorption, adsorption is exothermic:
Recognize physisorption trend

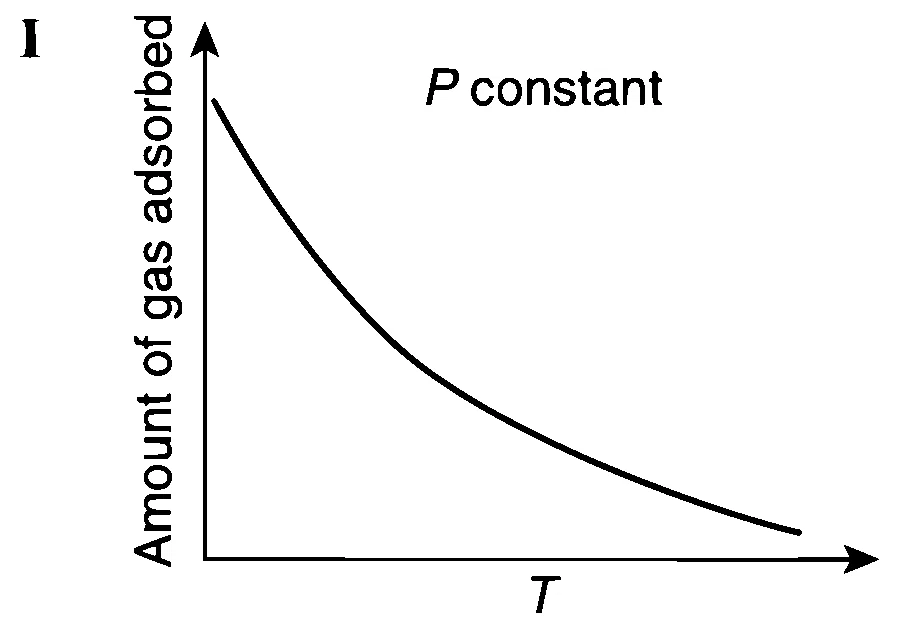

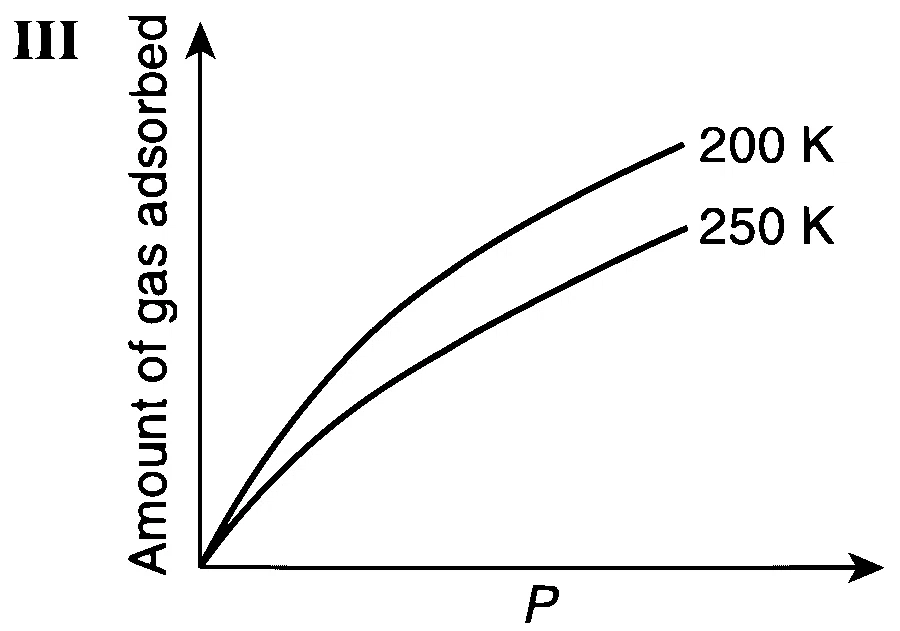

Under mild conditions, increasing temperature shifts this equilibrium backward by Le Chatelier's principle, so the extent or rate of physisorption decreases. This matches graphs I and III.
Recognize chemisorption trend

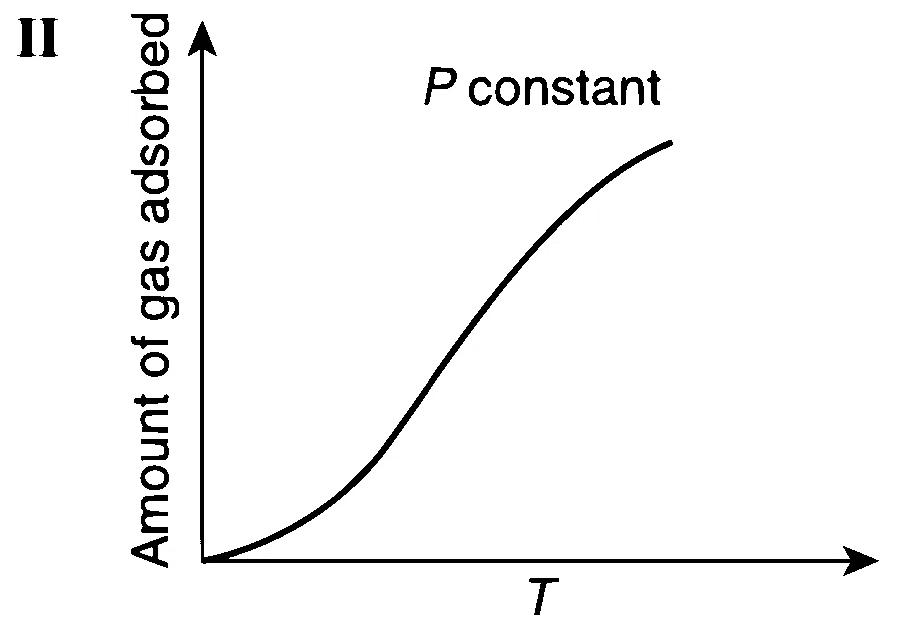

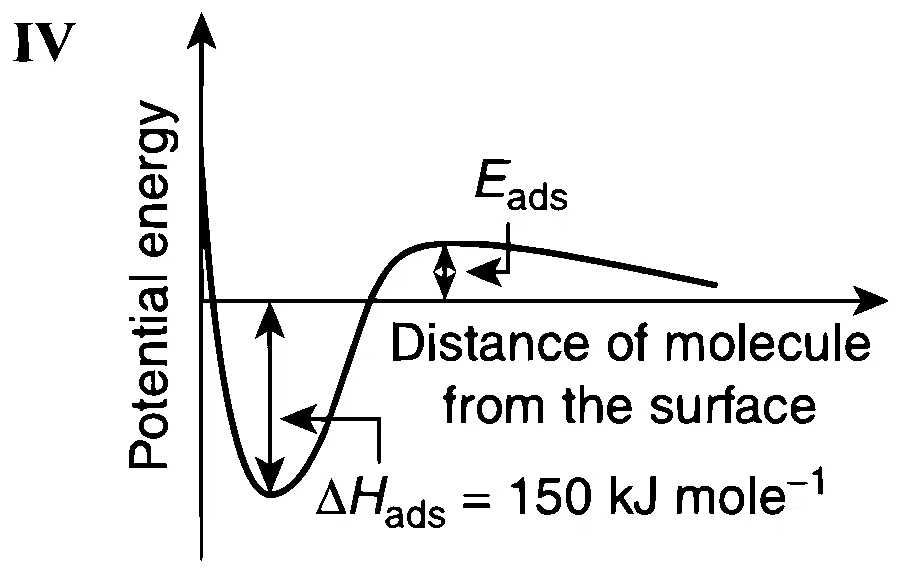

In chemisorption, strong bonds form between adsorbate and adsorbent. Its rate generally increases with temperature under these conditions. This matches graphs II and IV.
Match the options
Thus I and III represent physisorption, while II and IV represent chemisorption.
Conclusion
Options A and C are correct.
