Work Power And Energy PYQIIT-JEE 2011 Paper 2 Offline

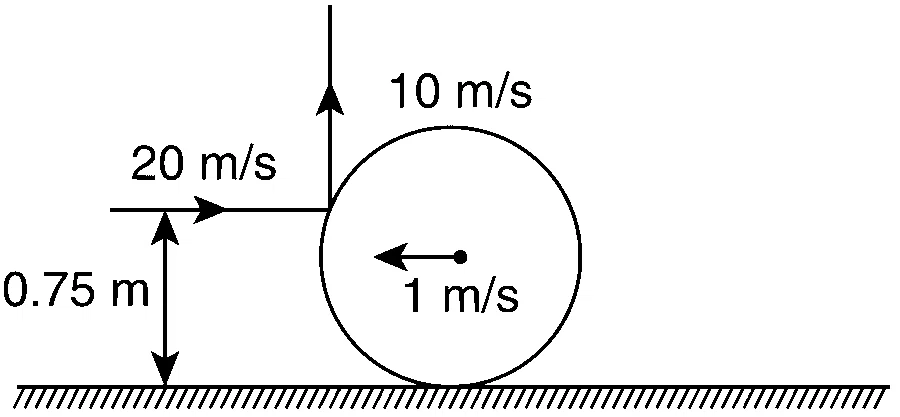

A thin ring of mass 2 kg and radius 0.5 m is rolling without on a horizontal plane with velocity 1 m/s. A small ball of mass 0.1 kg, moving with velocity 20 m/s in the opposite direction hits the ring at a height of 0.75 m and goes vertically up with velocity 10 m/s. Immediately after the collision,

Solution
Correct option: A, C
Correct options: A, C
Check horizontal momentum
Take the ring velocity as positive. Initially,
Use momentum conservation
The ball goes vertically after collision, so its final horizontal momentum is zero. Hence the ring must also have zero final horizontal momentum:
Interpret the ring motion
Since the ring's centre of mass is momentarily at rest but it still has angular motion, it undergoes pure rotation about its stationary centre of mass. So option A is correct.
Check angular momentum sense
About the point of collision, initially
Decide friction direction
The final angular velocity must be anticlockwise. For this motion, friction at the ground contact acts towards the left. Therefore option C is also correct.
