Work Power And Energy PYQIIT-JEE 2008 Paper 2 Offline

MCQ+3 / -12008

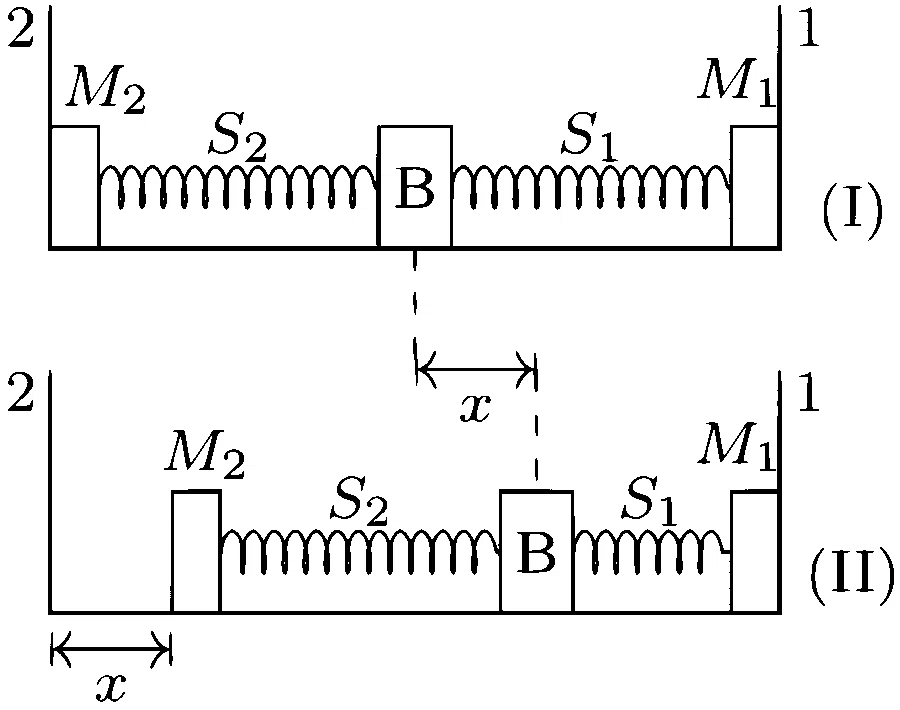

A block (B) is attached to two unstretched springs S1 and S2 with spring constants k and 4k respectively (see figure I). The other ends are attached to identical supports M1 and M2 not attached to the walls. The springs and supports have negligible mass. There is no friction anywhere. The block displaced towards wall 1 by a small distance x (figure II) and released. The block returns and moves a maximum distance y towards wall 2. Displacements x and y are measured with respect to the equilibrium position of the block B. The ratio yx is :


IIT-JEE 2008 Paper 2 Offline Physics - Work Power & Energy Question 5 English
